PyTorch demystified 4 -
Optimizing the CPU backend

Introduction

Now we have reached the last post of this initial series. After implementing a full MNIST training pipeline end-to-end in both C++ and CUDA and giving it a Python binding to be compiled into a Python module, we are ready for our last optimization, the C++ backend optimization. Because we already walked over the source code this time we can dive right into the optimization work. In the following we will learn about some CPU-native features, specifically looking at x86-64 (in the following only x64), among other optimization techniques. For everyone not familiar with x86 I give a small optional primer that will be enough for you to follow this blogpost, given you are already familiar with assembly language in general.

Optional: Primer on x86-64

▲ Collapse

This is a brief section intended to familiarize you with the basics of x64 assembly language, so that you can follow the discussions below. If you already know it well you can skip this section. To start off, x86 is a CISC architecture mostly run by Intel and AMD today. Unfortunately for us their commitment to backwards compatibility means for us that we now have to deal with a lot of historical baggage accumulated over decades.

Intel notation vs. AT&T notation

We start with the notation. There are two main ways to write x86 assembly code. The first is the AT&T notation. This style of x86 is marked by a ton of %-symbols, which is mainly how you identify it. It writes instructions in order instruction source, destination. Registers are prefixed with %, and immediates are prefixed with $. On top of that, it has instructions suffixed with operand size. b stands for byte, w for word (16-bit), l for long (32-bit), and q for quad (64-bit). For instance, an addl $10, %eax adds the value of 10 in 32-bit value encoding onto whatever is stored in register eax (registers in more detail later).

On the contrary, the Intel notation writes instructions as in instruction destination, source, the reverse of what the AT&T notation does. Immediates and registers have no prefixes. It does also not use the size suffixes given by AT&T. Instead, the operand sizes are inferred by the register name used. Later we will see that backward compatibility also meant that the same registers have been reused by Intel and AMD, making them larger and giving them naming conventions as to how we want to use them. So to sum this up, the same instruction above in Intel notation would just be a simple add eax, 10.

There are additional differences in addressing modes, especially indirect addressing mode. But to make things simple we will choose one of the two in the following, and we will look closer into addressing modes later. I personally like the Intel notation a little better, since I find it simpler and more intuitive to read. Due to historical reasons however Linux tools often by default use AT&T notation, unless explicitly told to output Intel. So the assembly code I got out of perf has all been in AT&T notation, so for the remainder of this blogpost we're gonna roll with AT&T notation.

Intel vs. AT&T assembly syntax at a glance.

	AT&T	Intel
Operand order	source, destination	destination, source
Register prefix	%	—
Immediate prefix	$	—
Operand size	instruction suffix (b/w/l/q)	inferred from register name
Addressing mode	disp(base,index,scale)	[base+index*scale+disp]
Example	addl $10, %eax	add eax, 10

Registers

To understand registers and their naming we have to go back to the 8086, the processor to introduce the x86 architecture. It came in 16-bit, which is why 16-bit are considered a "word" to this day. It had four general purpose registers, named A, B, C, and D. You would suffix them either with an H or an L, indicating which byte you'd refer to. So AH would be the higher byte of A, and AL then the lower byte of course. To access the full 16-bit of the registers you'd suffix it with an X, as in AX, BX, and so on.

It further had all the classics, importantly the stack pointer SP, the base pointer BP, both also classified as general purpose, the instruction pointer IP, the flags register Flags, and segment registers such as CS for the code segment, DS for the data segment, and SS for the stack segment.

The first 32-bit x86 processor was the 80386 (easy to remember: "insert a 3 for 32-bit"). For backward compatibility Intel chose to extend the previous registers, so that programs compiled for the 16-bit versions could still run. Thus the registers would remain the same, but if you wanted to use the full 32-bit of the now larger registers you'd prefix with an E, as in EAX, EBX, and so on. There was also an ESP and an EBP for the stack and base pointer respectively, among other extended registers. However, not each register got an upgrade to 32-bit. For instance the CS and DS registers remained 16-bit.

AMD called in the 64-bit era with the AMD Opteron in 2003. This is the point where we start to refer to x86 as x86-64, or just x64 in short. Apart from extending the previous general purpose registers (GPRs), now named RAX, RBX, RCX, and RDX to refer to their 64-bit versions, it gave x64 a whole slew of extra GPRs, named R8, R9, ..., R15. Other registers, among them the stack pointer and the base pointer, got an RSP and RBP upgrade, too. This was important, as it allowed computers to overcome the 4GB RAM bottleneck, as with 32-bit we can index $2^32=4 \cdot 2^30 = 4GB$ of indexable memory. The FLAGS register got an upgrade to both EFLAGS and RFLAGS as well.

General purpose registers (GPRs) across bit widths.

Register	64-bit	32-bit	16-bit	8-bit (high)	8-bit (low)
A	RAX	EAX	AX	AH	AL
B	RBX	EBX	BX	BH	BL
C	RCX	ECX	CX	CH	CL
D	RDX	EDX	DX	DH	DL
R8	R8	R8D	R8W	—	R8B
R9	R9	R9D	R9W	—	R9B
R10	R10	R10D	R10W	—	R10B
R11	R11	R11D	R11W	—	R11B
R12	R12	R12D	R12W	—	R12B
R13	R13	R13D	R13W	—	R13B
R14	R14	R14D	R14W	—	R14B
R15	R15	R15D	R15W	—	R15B

Other general purpose and special purpose registers.

Register	64-bit	32-bit	16-bit
Stack pointer	RSP	ESP	SP
Base pointer	RBP	EBP	BP
Instruction pointer	RIP	EIP	IP
Flags	RFLAGS	EFLAGS	FLAGS
Code segment	—	—	CS
Data segment	—	—	DS
Stack segment	—	—	SS

Apart from the general functions part of a processor x86 and x64 got extra features on top introducing extra registers as well. We don't need to know all of them, for us the most interesting are the floating point registers. In my previous post I have an optional section where I talk a little about floating points. Without repeating myself, Intel introduced a floating point unit in the 80s with the Intel 8087. While perfectly suited for software back then its stack based design does not serve modern standards anymore.

Later developments introduced another battlefront on processor design, namely SIMD instructions (see Flynn's taxonomy). Starting with MMX on Intel's side Intel and AMD competed on SSE and later AVX, introducing extra registers to load floating point and integer operands. The first registers introduced by the wave of SSE versions are 128-bit wide registers called XMM0, XMM1, ..., XMM15. With the introduction of AVX these were extended into 256-bit wide registers now called YMM0-YMM15, and would later be extended into 512-bit wide registers consequently called ZMM0-ZMM15 with AVX-512. The newest generations of Intel CPUs however do not support AVX-512, since Intel moved toward a more energy efficient CPU design. As far as I know however it is not off the table, just paused and planned to be re-introduced in future chips again.

SIMD register naming by width.

Naming	Bit-width
XMM0–XMM15	128-bit
YMM0–YMM15	256-bit
ZMM0–ZMM15	512-bit

We will later look at x64 assembly code, where we will see that those SIMD registers are being used for single floating points as well. This is due to them being better to use for modern software than the floating point unit itself, which at this point exists solely for backward compatibility. We can therefore skip its register naming.

Data transfer and addressing modes

Of course in a breakdown of the most important concepts of an ISA addressing modes cannot be left out. Before that we're gonna take a quick look at data transfer operations. Of course the basic operation there is the mov-operation. Copying an operand from one register to another happens through this command. Since we are in AT&T syntax we get the additional burden of writing out the width if it cannot be inferred. Remember that a word in x64 is 16-bit, hence movb is 8-bit, and movw is 16-bit. Going larger, movl is a long move at 32-bit, movq is a quad move with 64-bit.

When inferable this can be omitted, as we will see very often. For instance, mov %ebx, %eax is a 32-bit wide move operation from ebx into eax. Similarly, we can perform indirect addressing, copying the lowest 16-bit of whatever the stack pointer points to via mov (%rsp), %ax. The 32-bit equivalent would look like this: mov (%rsp), %eax.

Apart from that, the mov-operation comes in a few extra flavors: movzx zero-extends our operand, and movsx does a sign-extend on it.

As for addressing modes, it is probably best to simply let them express through a table. Because I do find Intel notation much more legible than AT&T I left out the verbal explanation, and simply have name, Intel notation, and then the AT&T notation we will be using. The table follows:

x86-64 addressing modes, Intel vs. AT&T syntax.

Addressing mode	Intel notation	AT&T notation
Register	mov eax, ebx	mov %ebx, %eax
Immediate	mov eax, 10	mov $10, %eax
Direct (absolute)	mov eax, [0x1000]	mov 0x1000, %eax
Indirect	mov eax, [rbx]	mov (%rbx), %eax
Base + displacement	mov eax, [rbx+8]	mov 8(%rbx), %eax
Base + index	mov eax, [rbx+rcx]	mov (%rbx,%rcx), %eax
Base + index*scale + displacement	mov eax, [rbx+rcx*4+8]	mov 8(%rbx,%rcx,4), %eax
RIP-relative (x64)	mov eax, [rip+0x10]	mov 0x10(%rip), %eax

SIMD instructions

With the introduction of SSE and later AVX a new class of instructions was introduced as well. The idea of the SIMD registers is to perform a single operation on multiple operands the same time, hence increasing computational throughput. Operations on these registers either run on a single operand or on multiple operands at once. The suffix indicates the type of the instruction: An ss for scalar single-precision, an sd for the double-precision equivalent, and the packed versions of those named ps and pd, indicating that the instruction works on all loaded operands at the same time. A multiplication can hence have the following expression, depending on what operands it works on: mulss, mulsd, mulps, and mulpd.

On top of that these two features introduced a large set of popular and rather complicated instructions that are commonly used in applications benefiting from SIMD instructions. For instance, it has fused arithmetic operations like the multiply-and-add (MAD), but also more complex instructions like vector dot products, among others.

SIMD instruction suffixes: scalar vs. packed, single- vs. double-precision.

	Single-precision	Double-precision
Scalar	ss	sd
Packed	ps	pd

We will later see in the disassembled programs that the compiler will map our code onto the single-operands instructions a lot, and we will fix it using the packed versions instead.

Example: the mov instruction across scalar/packed and single/double precision.

	Single-precision	Double-precision
Scalar	movss	movsd
Packed	movps	movpd

Optimization

In the following we are going to repeat the pattern we established in part 3. That is, we are going to optimize the CPU backend step by step. Each step will be accompanied by a commit hash, times before and after, a profiler output, and an explanation of what happens beneath the hood.

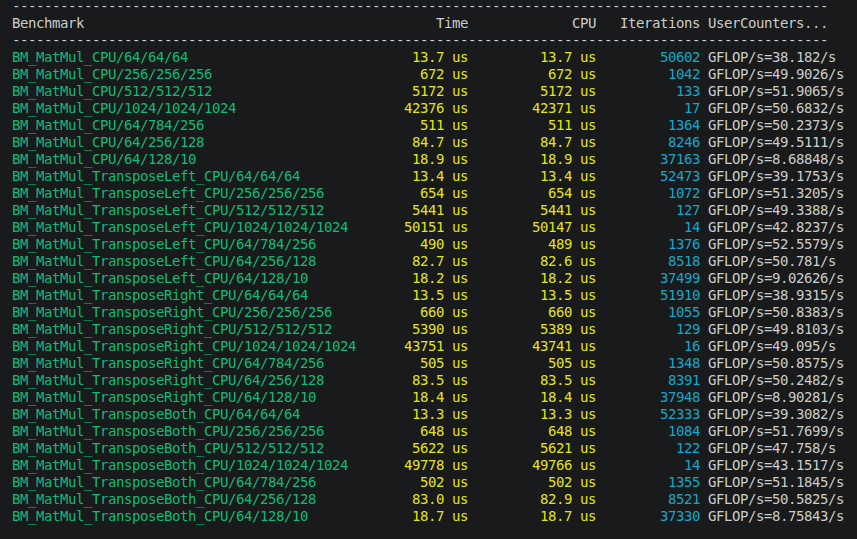

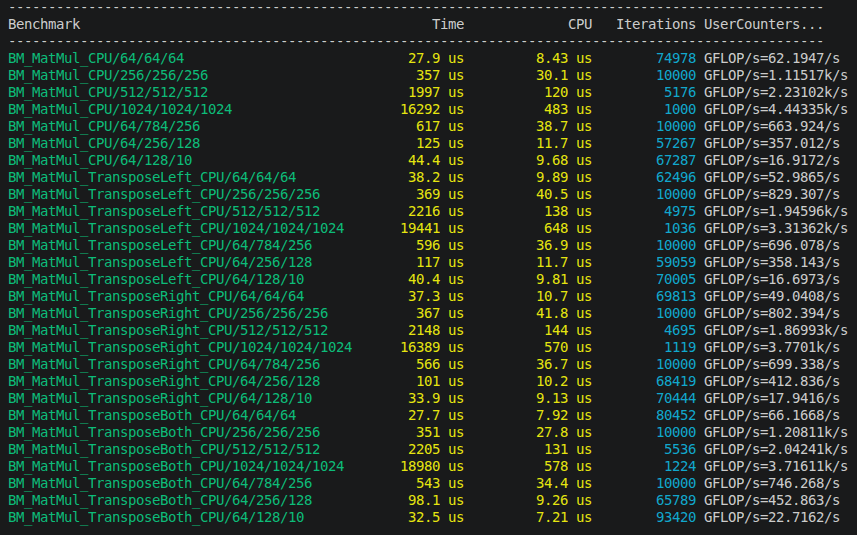

As for the benchmark, I am going to learn from my mistakes and am going to run the benchmarks on the whole epoch from the start, rather than starting with a subset of it and switching later. That means that this time we are going to have the same benchmark from beginning to the end. The benchmarking script will be the same as in the previous part as well, except that this time we are not going to put our tensor onto the GPU.

As a short disclaimer beforehand: I did my best to walk into this whole process with a clean slate, so that each fix's contribution falls solely onto the optimization steps I describe here. However, no larger piece of software is perfect, and I happened to stumble upon pieces of code that either needed refactoring or debugging. These changes can contribute to the benchmarked times in both ways, upwards and downwards. I am confident that the difference in time is mostly due to my optimizations, but if you want to dig deeper I have documented each step I take in the git commit history, so that you can look at every change by yourself and test it out. And with that said let's get started with fix 1.

Opt. 1 - Use more aggressive compiler optimization

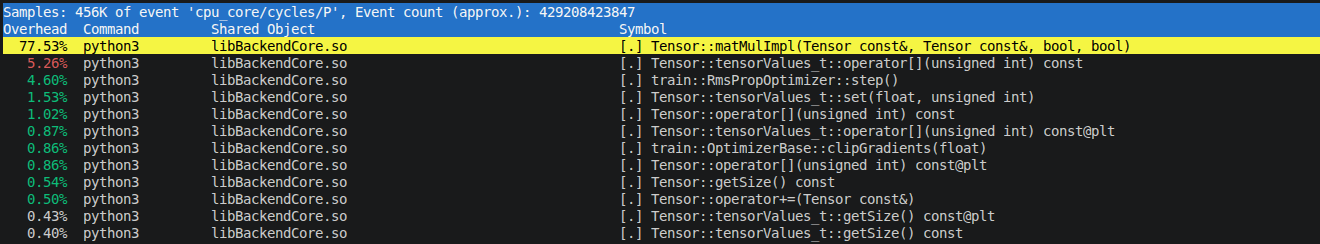

Before we do any optimization, we first run a profiler. I used perf for this purpose, where we can get metrics such as time spent on the program, giving us a call tree, and we can profile for individual metrics. We are going to use the tool extensively, and you will see various examples of what it is capable of. For now we want to see where our computation time flows. perf gives us the following as to where it spends most of the execution time:

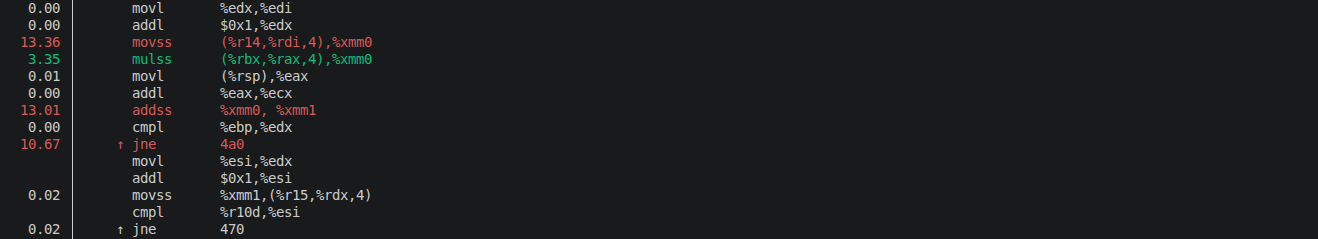

We can further use perf to look into the assembly code, where we get more details of what is happening. We find the following for the inner loop of the matmul:

The most telling sign for now is the ss-suffix, indicating single operand instructions. My machine is an Asus laptop with an Intel i5 210Hx12, and running cat /proc/cpuinfo | grep flags | head -1 | tr ' ' '\n' | grep -i avx in bash reveals that it is AVX and AVX2 capable. Hence the compiler should auto-vectorize the loop using SIMD instructions, but somehow it did not do that.

Since so far we did not specify an optimization flag, it is the most natural solution to first try to use a more aggressive optimization. If you want to follow this step, simply add the line set(CMAKE_CXX_FLAGS_RELEASE "-O3 -DNDEBUG") in CMake. The program executes as expected, so the optimization did not introduce errors so far. The improvement on the other side is an easy win, but not that strong. As we will see in the next section the compiler still has not figured out how to optimize the inner loop yet, so the optimizations happened somewhere in less impactful parts of the program.

Opt. 2 - Test better access pattern and inline functions

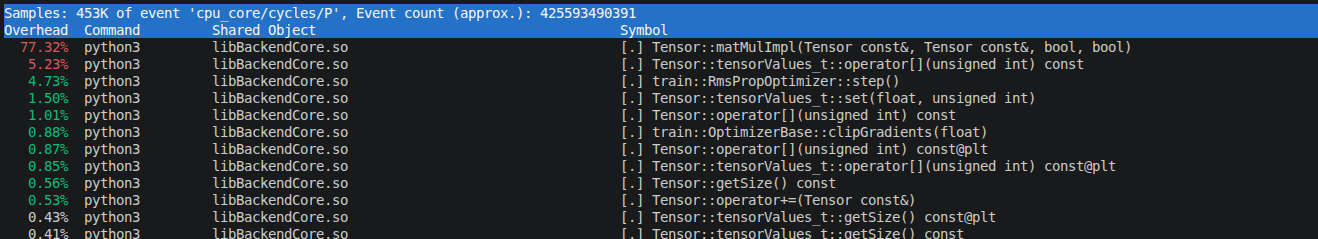

In this section we will lay our hands on the matmul operation. Looking at the perf output for now we can see that again the matmul eats almost all of our cake:

Because we will be talking about the matmul quite a bit in this post it is probably a good idea to first take a look at it. We will start with the version below and gradually refine over the next few subsections that are part of this blog entry. So here it is:

// src/backend/data_modeling/tensor.h

template<bool transposeLeft, bool transposeRight>
void Tensor::matMul2DCpu(Tensor& res, const Tensor& left, const Tensor& right, const tensorSize_t resOffset,
                           const tensorSize_t leftOffset, const tensorSize_t rightOffset) {

  const auto nRowsLeft = static_cast<tensorSize_t>(left.dims.get(-2));
  const auto nColsLeft = static_cast<tensorSize_t>(left.dims.get(-1));
  const auto nColsRight = static_cast<tensorSize_t>(right.dims.get(-1));
  const auto nRowsRight = static_cast<tensorSize_t>(right.dims.get(-2));

  const tensorSize_t M = transposeLeft ? nColsLeft : nRowsLeft;
  const tensorSize_t K = transposeLeft ? nRowsLeft : nColsLeft;
  const tensorSize_t N = transposeRight ? nRowsRight : nColsRight;

  for (tensorSize_t i = 0; i < M; i++) {
    for (tensorSize_t j = 0; j < N; j++) {
      ftype sum = 0;

      for (tensorSize_t k = 0; k < K; k++) {
        tensorSize_t leftIdx = transposeLeft ? leftOffset + k * nColsLeft + i
                                             : leftOffset + i * nColsLeft + k;

        tensorSize_t rightIdx = transposeRight ? rightOffset + j * nColsRight + k
                                               : rightOffset + k * nColsRight + j;

        sum += left.values->data()[leftIdx] * right.values->data()[rightIdx];
      }

      res.values->data()[resOffset + i * N + j] = sum;
    }
  }
}

I note here that I have already silently introduced an optimization that happened on the CUDA side, namely the template overloads. Other than that the kernel should be obvious, since this is the looping and index arithmetics we already have seen before. In short, it is a plain naive matrix multiplication. So let us look at the perf output. We start profiling the number of cycles spent per instruction:

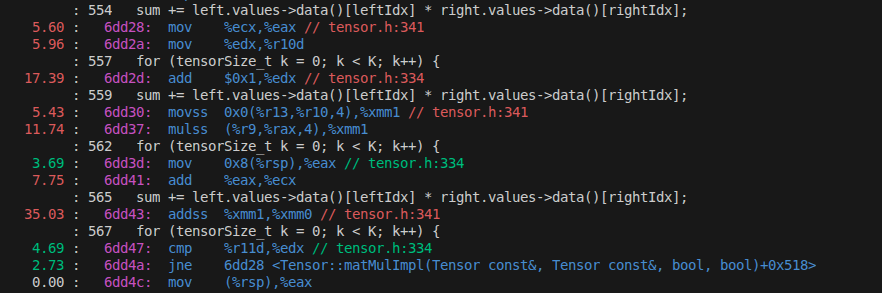

This is rather telling. We can see that the compiler performed instruction scheduling optimizations for us. We can see at the top that it is first loading the two operands of the matmul into the registers. To hide the latency from the memory fetches it goes back to the outer loop and increments the loop's counter by one, since it already resides in a register.

Going through it step by step it does the following: The first two instructions annotated by the sum set up our indices, indicated by where the two destination registers are actually used. The increment of k by one is obvious. Next, it moves one of the two operands into register xmm1 and multiplies the two through a mulss-operation. Next it updates eax by what's coming next on the stack-pointer, and adds that onto ecx. Those two are likely an index update of the leftIdx or rightIdx for the next round. Lastly, it adds the result onto the running sum.

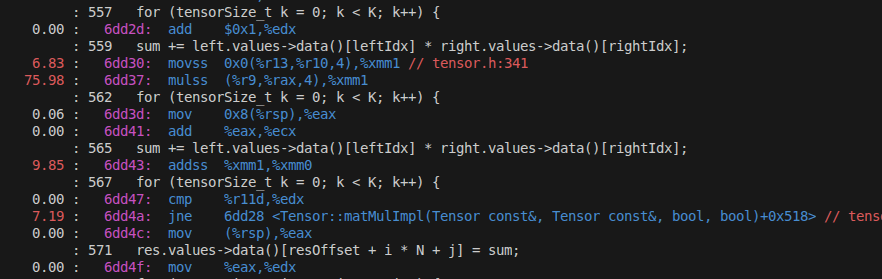

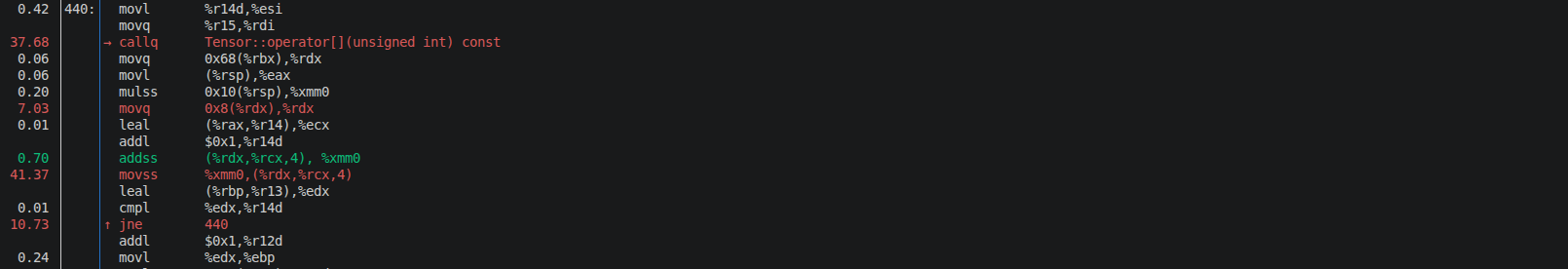

When it comes to the annotation, what pops out is the weird numbers. The addss takes a lot of time, and so does the mulss, but the mov-operations are expensive too, though not as much. This is likely contributed to skid, where the latency of instructions goes a few instructions further down the line. We can confirm this by tracking better metrics, going down the PEBS rabbit hole of Intel CPUs. But since we already know that we do not run cache-optimal we can also confirm that by specifically sampling for cache-misses. We get the following:

Test better access pattern

This confirms what we suspected, namely that we do have a large number of cache misses in these lines. To fix that we are going to add the tiled approach later. However, before we start we could score a quick win that we will undo, but sometimes our curiosity gets the better of us. So I decided to write out the loops specifically, but with a better memory access pattern. I therefore created this little beast here:

// src/backend/data_modeling/tensor.h

template<bool transposeLeft, bool transposeRight>
void Tensor::matMul2DCpuScalar(Tensor& res, const Tensor& left, const Tensor& right, const tensorSize_t resOffset,
                           const tensorSize_t leftOffset, const tensorSize_t rightOffset) {
  // physical, not logically as in the transposition
  const auto nRowsLeft = static_cast<tensorSize_t>(left.dims.get(-2));
  const auto nColsLeft = static_cast<tensorSize_t>(left.dims.get(-1));
  const auto nColsRight = static_cast<tensorSize_t>(right.dims.get(-1));
  const auto nRowsRight = static_cast<tensorSize_t>(right.dims.get(-2));

  if constexpr (!transposeLeft && !transposeRight) {
    for (tensorSize_t i = 0; i < nRowsLeft; i++) {
      const tensorSize_t leftOffset = i * nColsLeft;
      const tensorSize_t resOffset = i * nColsRight;

      {
        // tensors not zero initialized, therefore need one dry run pre-filling
        const auto leftVal = left.values->data()[leftOffset];
        for(tensorSize_t j = 0; j < nColsRight; j++) {
          res.values->data()[resOffset + j] = leftVal * right.values->data()[j];
        }
      }

      // compute the entire column of the left matrix
      for (tensorSize_t k = 1; k < nRowsRight; k++) {
        const tensorSize_t rightOffset = k * nColsRight;

        const ftype leftVal = left.values->data()[leftOffset + k];
        for(tensorSize_t j = 0; j < nColsRight; j++) {
          res.values->data()[resOffset + j] += leftVal * right.values->data()[rightOffset + j];
        }
      }
    }
  }
  // do the other overloads here also
}

The idea is really simple: If none of the two matrices is transposed, use a better access pattern on the right matrix. For the transposed cases do the same by explicitly writing out the loops. No fancy techniques, just a minor fix. The code for this fix resides in commit hash bc4878e119c377cf57c44eb5008200396811a12c. In theory the fix should speed things up by increasing cache-hit rates. Testing it out on our benchmark gives us however a terrible number, namely around 118s on our benchmark. This fix does not really matter, since we eventually will swap to the tiled matmul approach anyway, but it is still worth looking into what happened.

Inline getter- and setter-functions

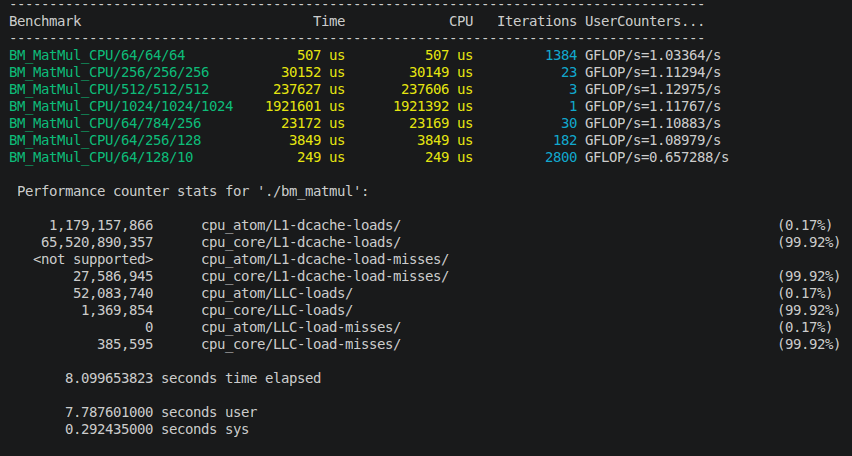

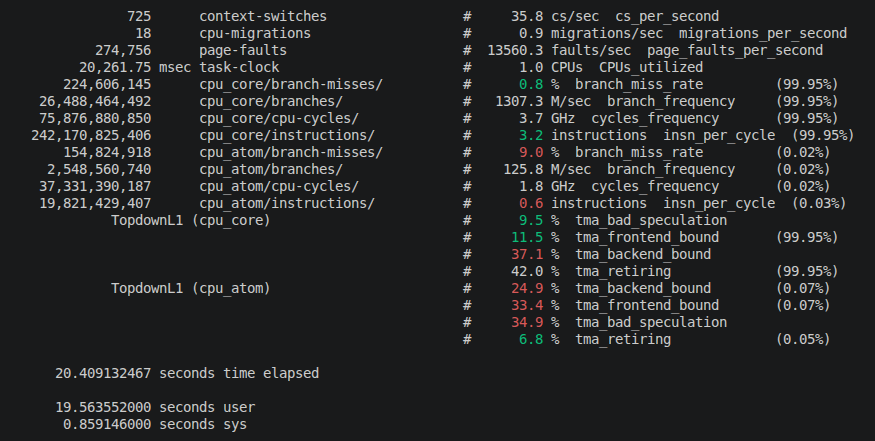

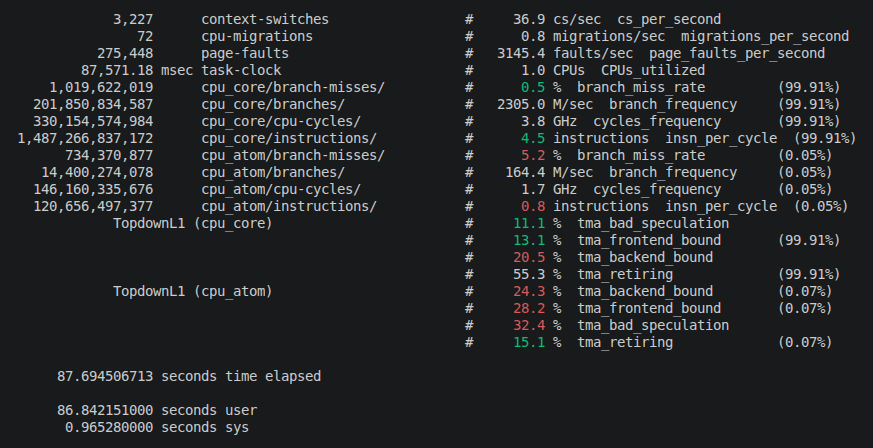

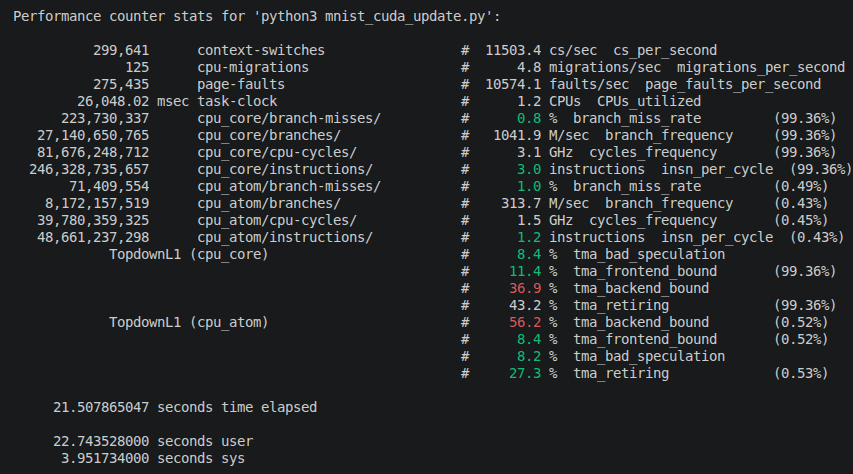

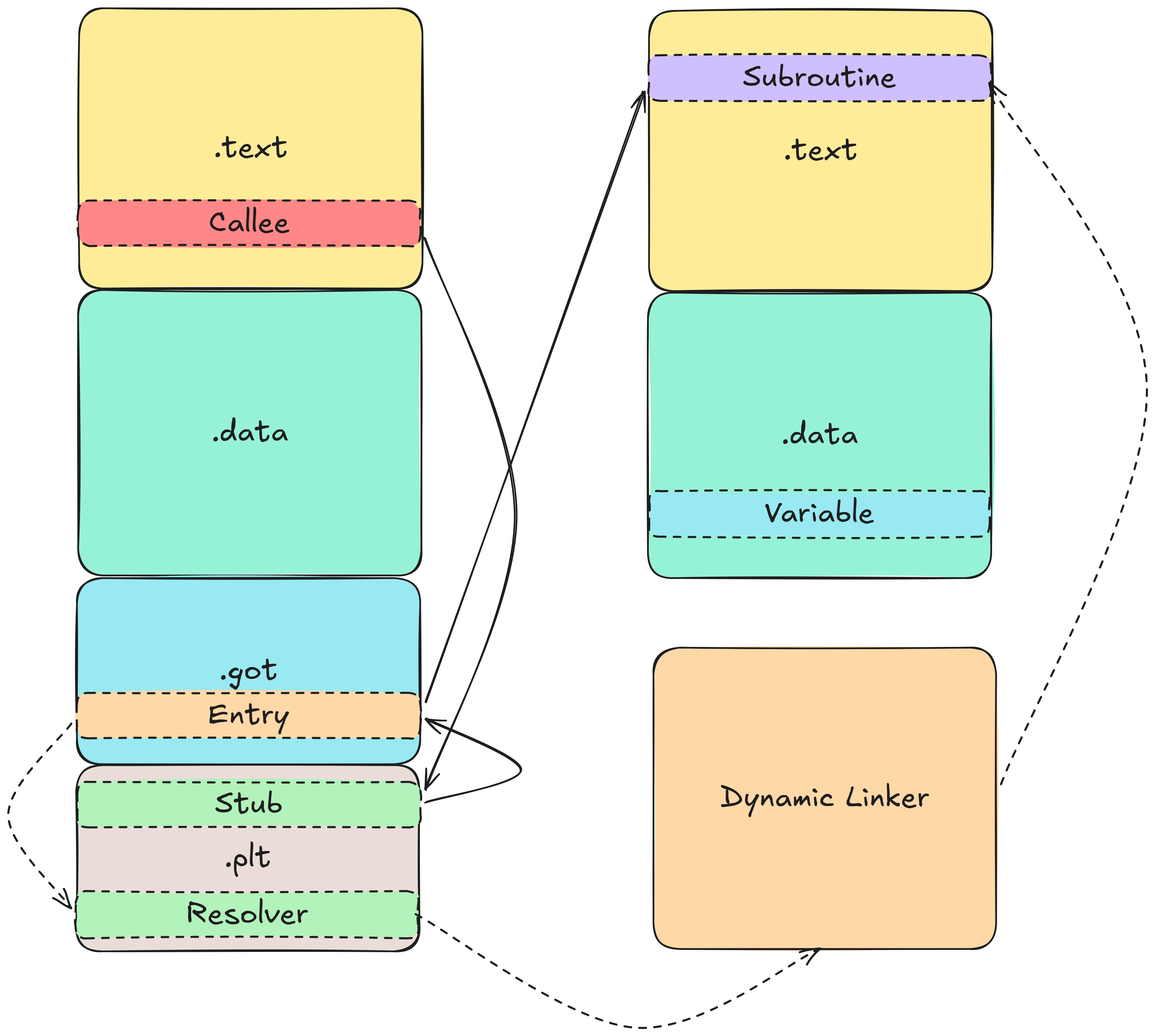

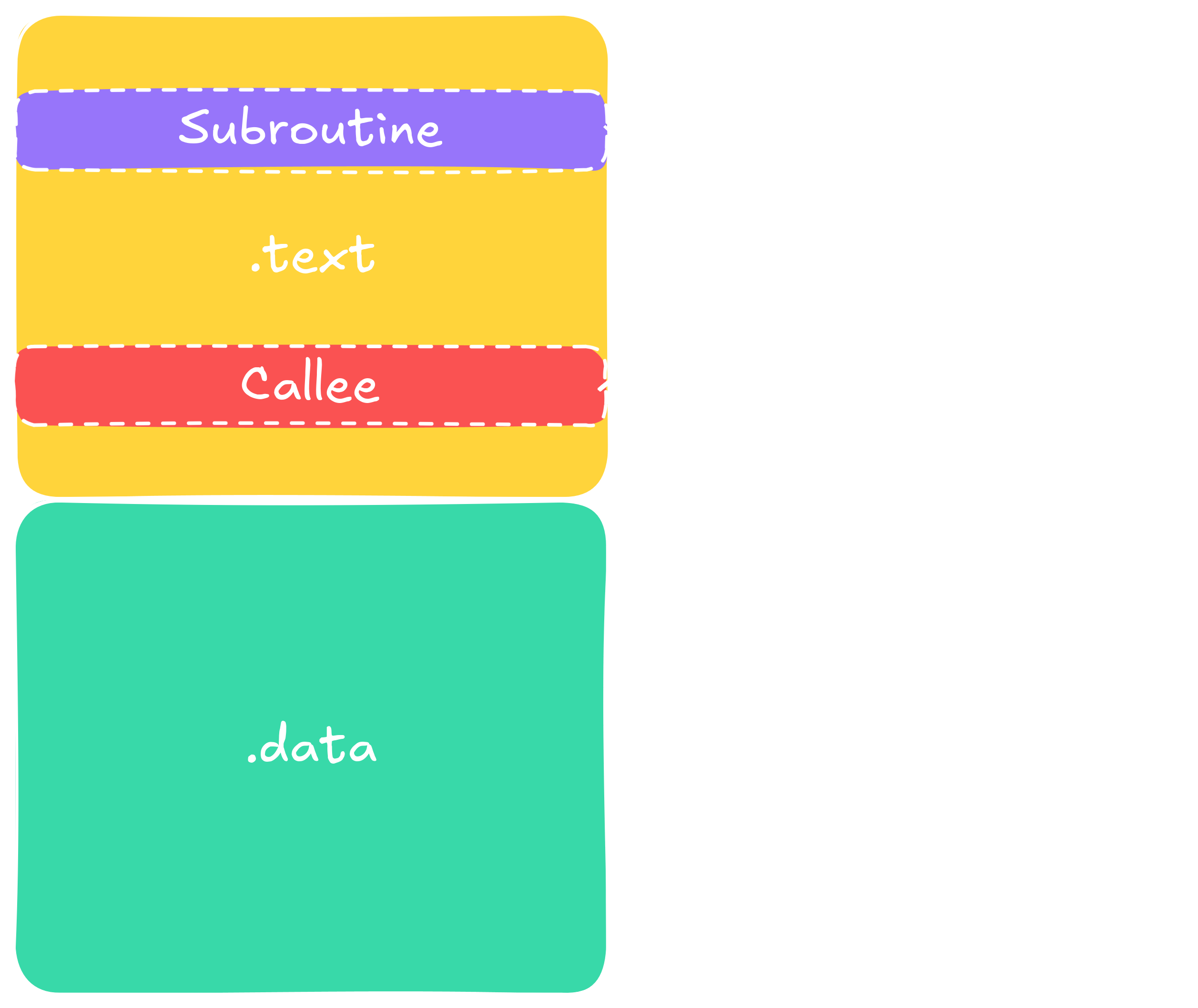

Running perf stat on the benchmark on the matmul specifically, that I introduced in the previous post in an optional section, shows us this:

The surprising part about this is that even though L1-cache misses are low at around 0.04% roughly, the program did really badly. So something else must be going on. We take a look at the assembly code and find this:

The interesting part is the second line from above, showing us that the indexing operator on the tensor could not be inlined. Hence, the fix here is to inline the getter- and setter-method for the tensor. You can find the initial fix in commit hash ec17463cf7e568efe7d99a0be64a4d5e52d08efe. In this commit I moved the getter- and setters out of the .cpp-file into the header, giving the compiler the chance to inline those functions where it deems it a good choice. And the results speak for themselves, with a resulting benchmark time of around 27.5s.

Second wave: Blanket inline on small and trivial functions

I did go a little beyond what was needed and did more of a blanket inline in commit ec17463cf7e568efe7d99a0be64a4d5e52d08efe, where I identified small functions and moved their implementation directly into the header. This gives the compiler the chance to embed them directly into where they are called. Running the code again with the functions inlined we get the following: 28.7427s.

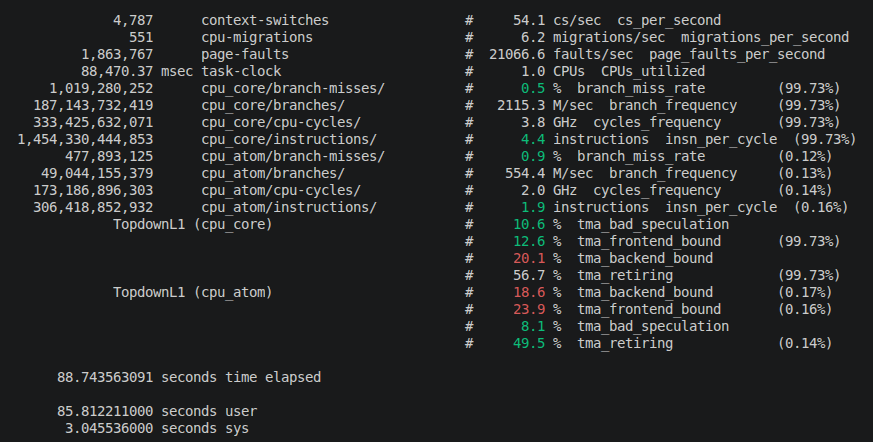

Now this is a little odd, given that runtime increased a little, roughly one second on the whole script. Re-running both versions reveals to me that this does not seem to be a one-off, but rather a consistent degradation. Running perf stat on both versions we see the following:

A little unexpected, after the larger inline we did the program genuinely spends less time in user space, but has increased time in system space, with more context switches and more CPU migrations. Work on P-cores (cpu_core) has decreased, and work on E-cores (cpu_atom) has increased. We also see more page faults. Checking the file sizes reveals the bigger picture as seen below:

This is a classic case of inlining too aggressively in the end. Our inlining has increased code size dramatically, leading to more page faults due to more code needing to be moved into working memory. This interrupts the kernel and the scheduler, giving the scheduler opportunity to shift the workload in between cores, and hence also the opportunity to shift it onto E-cores.

Because the difference is small we can leave it as it is now, I might revert those changes back to their state before the second, more blanket inline, and doing inlining more punctual in the future. For now we roll on with it.

Opt. 3 - Implement tiled matmul

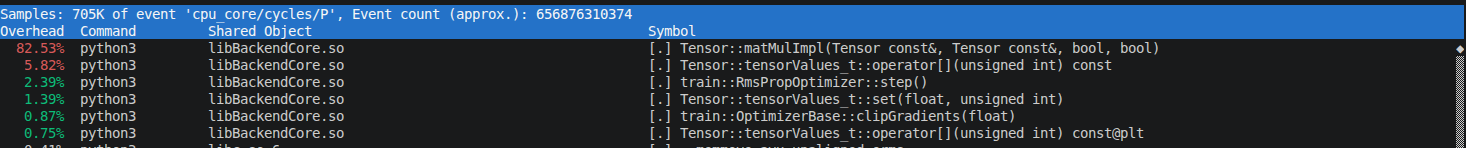

This one unsurprisingly slaps big time, since we already saw the largest improvements from the CUDA side on this one. I also note that for brevity I cut this blogpost a bit short, since I mainly repeat myself here if you have seen the previous post. Before we start we just verify what we already have learned there though we will run perf on the benchmark. In the following we see the contribution of matmul and it's assembly, annotated with cycles:

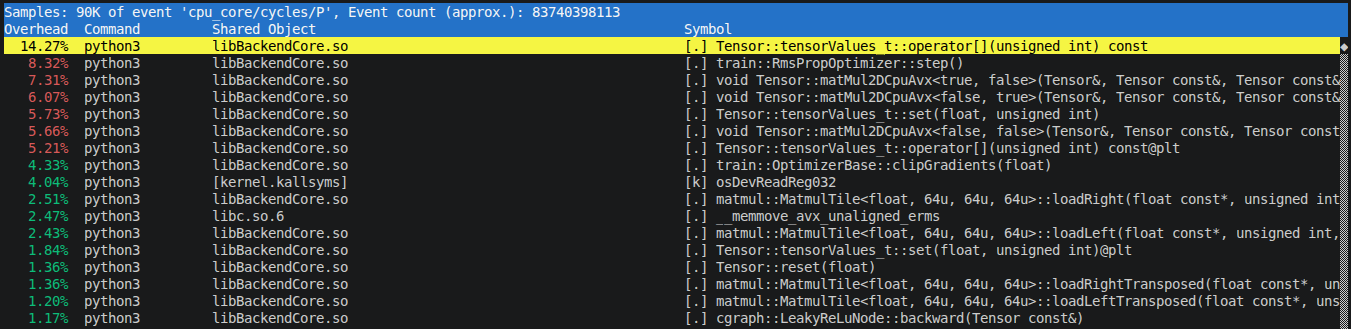

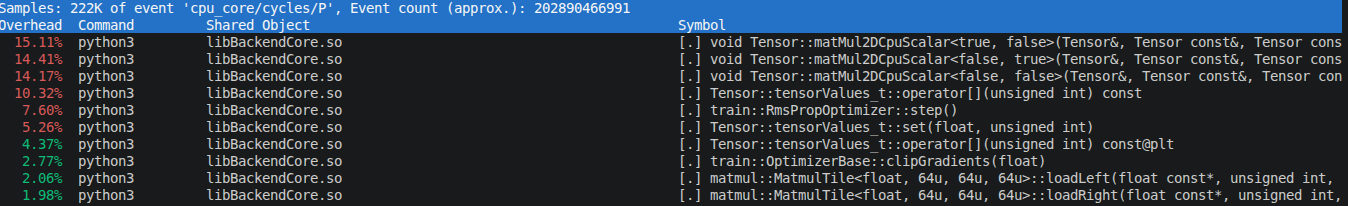

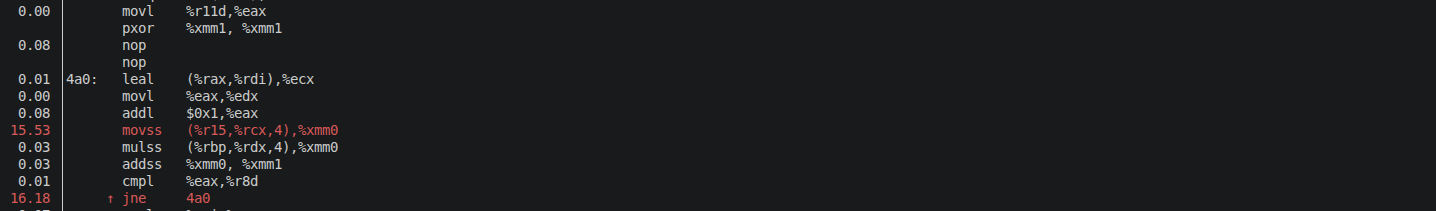

We can see that matmul is still the main contributor to run-time, and we can still see the same pattern as before. The arithmetic operations get the bulk of cycles, which is likely the wait on operand loads. We can get a hint on this in the last perf outputs of the previous section, where we spend little time on tma_retiring, but lots on tma_frontend and tma_backend. The tma_backend number is what we aim to reduce here. I admit that here additional measurements would be better for a more concise diagnostic, but my fingers burned for the tiled matmul, which would be subject to another analysis cycle anyway, so let's start with it.

Because this time I want to spare you (and me) the indexing hell introduced in CUDA I introduce an extra struct here, representing the tile we load in. Its definition looks like this.

// src/backend/data_modeling/matmul_tile.h

namespace matmul {
  template<typename T, tensorSize_t TileM, tensorSize_t TileK, tensorSize_t TileN>
  requires std::is_floating_point_v<T>
  struct MatmulTile {
      std::array<T, TileM * TileK> left{};
      std::array<T, TileK * TileN> right{};
      std::array<T, TileM * TileN> result{};

      void loadLeft(const T* const src, tensorSize_t row0, tensorSize_t col0, tensorSize_t nRows, tensorSize_t nCols);
      void loadRight(const T* const src, tensorSize_t row0, tensorSize_t col0, tensorSize_t nRows, tensorSize_t nCols);

      void loadLeftTransposed(const T* const src, tensorSize_t row0, tensorSize_t col0, tensorSize_t nRows, tensorSize_t nCols);
      void loadRightTransposed(const T* const src, tensorSize_t row0, tensorSize_t col0, tensorSize_t nRows, tensorSize_t nCols);

      void clearResult() noexcept {
        std::fill(result.begin(), result.begin() + TileM * TileN, T{0.0f});
      }
      void addResult(T* const dst, tensorSize_t row0, tensorSize_t col0, tensorSize_t nRows, tensorSize_t nCols);
  };
}

The tile is pretty much self-explanatory. I templated the struct so that we can exchange the datatype easily, but also in case we have need for it somewhere else. I also introduced three template parameters indicating the dimensions of the tiles for both the left and the right tile, albeit for now I only support quadratic tiles, so this part of the code is a hot candidate for some small refactoring.

The tiles are stored as std::array types, reducing run-time through better data locality compared with the std::vector data-type. Because we will always need a left tile, a right tile, and a result tile to write the results into we can write out the three arrays. The clearResult zeros out the result tile, and the addResult adds the content of the result tile into a target tensor into the given dimensions. The load-methods are also very self-explanatory. With that we can take a look at what our refactored matrix multiplication looks like now:

// src/backend/data_modeling/tensor.h

void Tensor::matMul2DCpuScalar(Tensor& res, const Tensor& left, const Tensor& right, const tensorSize_t resOffset,
                               const tensorSize_t leftOffset, const tensorSize_t rightOffset) {
  // physical, not logically as in the transposition
  const auto nRowsLeft = static_cast<tensorSize_t>(left.dims.get(-2));
  const auto nColsLeft = static_cast<tensorSize_t>(left.dims.get(-1));
  const auto nColsRight = static_cast<tensorSize_t>(right.dims.get(-1));
  const auto nRowsRight = static_cast<tensorSize_t>(right.dims.get(-2));

  // tune in accordance with cache-line size
  constexpr tensorSize_t TILESIZE = (MemoryLayout::CACHE_LINE_BYTES / sizeof(ftype)) * 4;
  using tile_t = matmul::MatmulTile<ftype, TILESIZE, TILESIZE, TILESIZE>;
  tile_t tiles;

  res.reset(0.0f);

  auto matmulTiles = [TILESIZE] (tile_t& tiles) {
    for(tensorSize_t n = 0; n < TILESIZE; n++) { // rows left
    const tensorSize_t leftTileRowOffset = n * TILESIZE;

    for(tensorSize_t m = 0; m < TILESIZE; m++) { // cols left
      const tensorSize_t rightTileRowOffset = m * TILESIZE;

        const ftype leftVal = tiles.left[leftTileRowOffset + m];
        for(tensorSize_t kk = 0; kk < TILESIZE; kk++) {
          tiles.result[leftTileRowOffset + kk] += leftVal * tiles.right[rightTileRowOffset + kk];
        }
      }
    }
  };

  if constexpr (!transposeLeft && !transposeRight) {
    for(tensorSize_t i = 0; i < nRowsLeft; i += TILESIZE) {
      for(tensorSize_t j = 0; j < nColsRight; j += TILESIZE) {
        tiles.clearResult();

        for(tensorSize_t k0 = 0; k0 < nColsLeft; k0 += TILESIZE) {
          tiles.loadLeft(left.values->data(), i, k0, nRowsLeft, nColsLeft);
          tiles.loadRight(right.values->data(), k0, j, nRowsRight, nColsRight);

          matmulTiles(tiles);
        }

        tiles.addResult(res.values->data() + resOffset, i, j, nRowsLeft, nColsRight);
      }
    }
  }
  else if constexpr (!transposeLeft && transposeRight) {
    // ...
  }
  // add the other template overloads
}

At first we initialize a tile. We tune it in accordance with a cache-line, which I encoded through CACHE_LINE_BYTES, which is a constexpr-number of 64 on my machine. To avoid repetitive work I wrapped the matrix multiplication in a lambda, since it is the same for all four cases, multiplying the two tiles into the resulting tile. Lastly we add it on top of the resulting matrix.

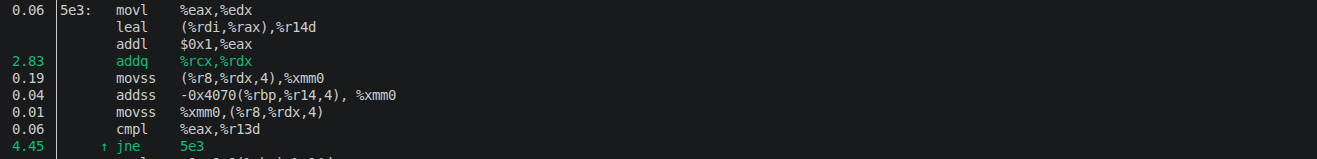

The result is very obvious, with the best improvement we logged so far in this post. However, we are not done with it. Looking at the aftereffects of our implementation, given by the two perf outputs below, we do see that the compiler still did not do us the favor of autovectorizing the loops. The following fix will get us to do this manually.

Opt. 4 - Manually vectorize the matmul through AVX

As indicated in the previous step the compiler once again did not help us in auto-vectorizing the loop. The following output shows us the single operand usage the compiler emits, and that we plan to fix in the following.

On x64 chips we can use AVX to do so. Chances are you use such a machine, with a small chance of it being a Mac, which has its own proprietary hardware acceleration instructions. In the following I show the AVX variant.

Optional: Quick primer on AVX

▲ Collapse

Basics and instruction format

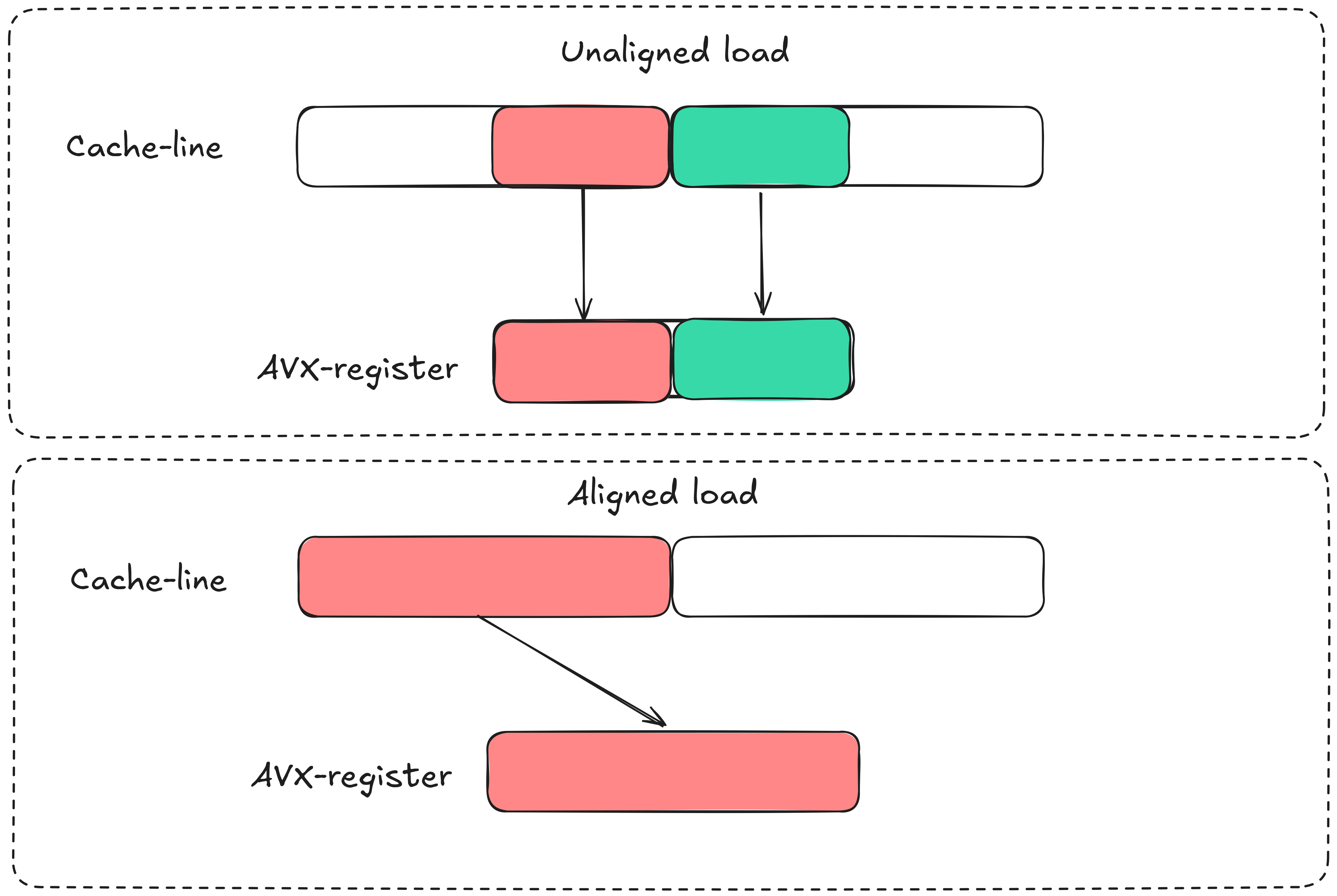

I assume you are familiar with AVX at this point, or at least the rough outline. Here I will only briefly describe what we need to look out for if we want to use it in our code. As described in the optional section above, AVX introduced a set of new registers, starting with XMM0-XMM15, and extending that to the Y- and Z-variants. With that came a set of instructions, with the ss-suffix for single operands, and the ps-suffix for the packed operands.

What I still owe you is what this looks like in C++. To start off, we have to include the header immintrin.h. This one gives us access to the AVX functions. To make AVX accessible in our code we also have to tell the compiler that we want to use AVX. What the flag looks like is compiler dependent. In the case of GCC it is for instance -mavx2 for AVX2.

Once this is done we get access to the AVX functions defined in the header we just included. Instructions are usually of the form _mm[bitwidth]_[instruction]. For instance, in AVX and AVX2 we use the YMMX registers, which are 256-bit wide. Data types follow this convention with _m[bitwidth]. A load into a YMMX register would be for instance _m256 var = _mm256_load_ps(somePtr);. The AVX library already serves the overloads on the arguments. For instance, if the pointer is of floating point type we have

// /usr/lib/gcc/x86_64-linux-gnu/15/include/avxintrin.h

extern __inline __m256 __attribute__((__gnu_inline__, __always_inline__, __artificial__))
_mm256_load_ps (float const *__P)
{
  return *(__m256 *)__P;
}

Memory alignment

The last thing worth noting is memory alignment. AVX is implemented to fetch all memory in parallel. So say we load a 256-bit wide operand. Then there are two cases now:

• Operand is aligned
• Operand is not aligned

In general AVX provides two memory loads for that: Aligned (default) and unaligned (e.g. _mm256_loadu_ps. Pay attention to the u after load). The unaligned version should always work, but can be slower in reality. I have heard that nowadays on modern CPUs the penalty between aligned and unaligned is non-existent anymore, but I cannot vouch for that. However, I do know that whenever possible it is better to align memory. The graphic below shows the general idea.

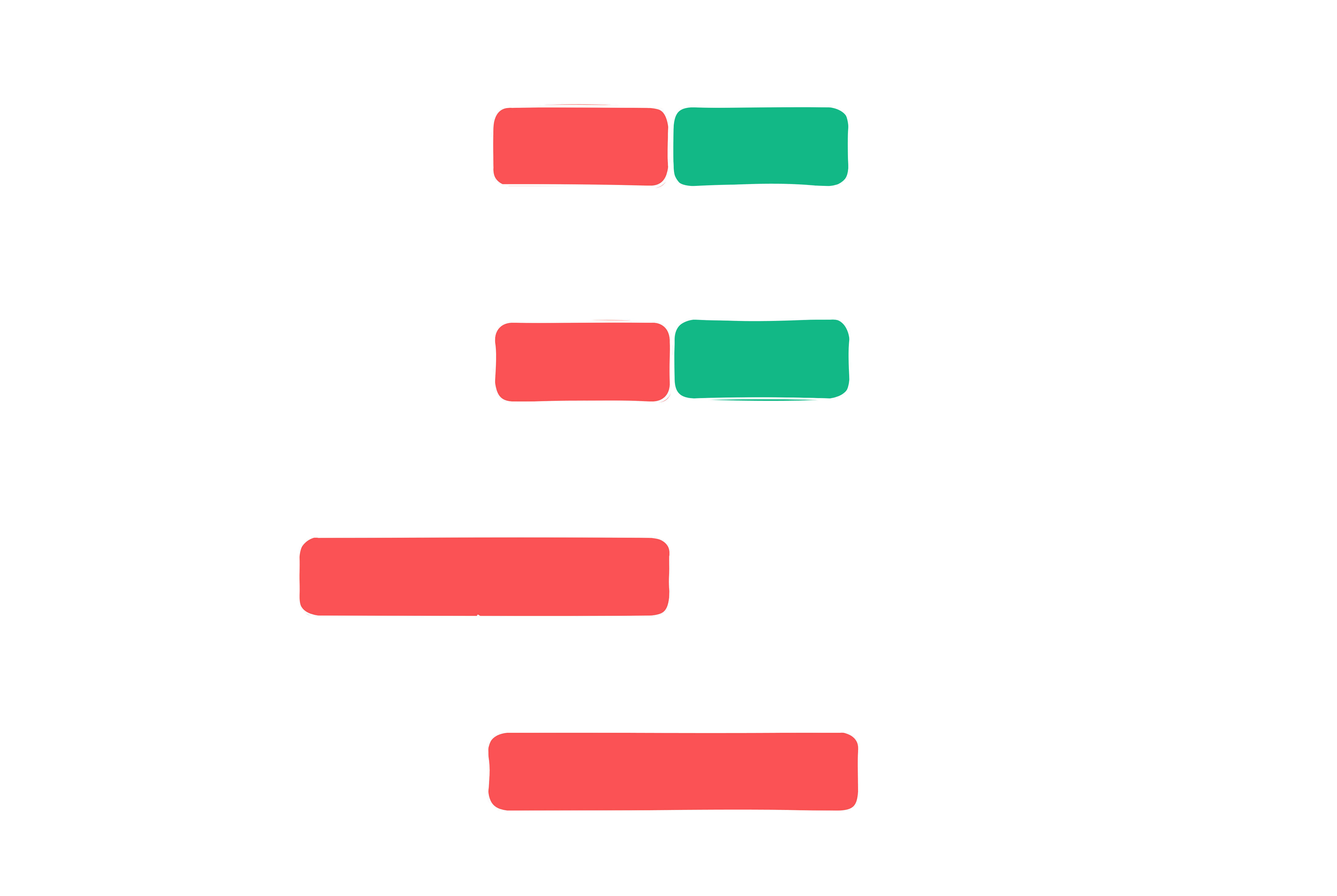

What we can see is that when memory is unaligned, which happens at very least when we load from cache memory, then AVX is forced to perform two loads over one. However, with aligned memory we can simply load the operand all at once.

The alignment differs between AVX versions. While AVX and AVX2 requires a 32-byte alignment, AVX512 requires a 64-byte alignment. For reference, if you happen to use SSE instructions (unlikely, but possible), you'll want to align by 16-byte.

To start off, we first have to align our operands. We can do this through a slight modification in our tile-data structure.

// src/backend/data_modeling/matmul_tile.h

namespace matmul {
  template<typename T, tensorSize_t TileM, tensorSize_t TileK, tensorSize_t TileN>
  requires std::is_floating_point_v<T>
  struct MatmulTile {
      alignas(MemoryLayout::CPU_TENSOR_ALIGNMENT) std::array<T, TileM * TileK> left{};
      alignas(MemoryLayout::CPU_TENSOR_ALIGNMENT) std::array<T, TileK * TileN> right{};
      alignas(MemoryLayout::CPU_TENSOR_ALIGNMENT) std::array<T, TileM * TileN> result{};

      // same as before...
  };
}

The quantity CPU_TENSOR_ALIGNMENT is defined by the following: constexpr static unsigned int CPU_TENSOR_ALIGNMENT = 64;. Here I picked 64-bytes to enable AVX512, but 32 for AVX2 will suffice for us. To assist the fetches into cache memory we also modify our memory pool slightly by using aligned allocs rather than the casual malloc calls:

// src/backend/shared/memory_pool.h

namespace mempool_impl {
  // ...

  template<typename T>
  T* MemoryPool<T>::request(const Device d, const tensorSize_t n) {
    switch(d) {
      case Device::CPU:
      {
        auto& list = freeLists[n];
        if(!list.empty()) {
          T* ptr = list.back();
          list.pop_back();

          assert(ptr != nullptr);
          ASSERT_HOST_PTR(ptr);

          return ptr;
        }

        // aligned_alloc requires size to be an integral multiple of alignment
        const tensorSize_t alignedByteSize =
          ((n * sizeof(T) + MemoryLayout::CPU_TENSOR_ALIGNMENT - 1) / MemoryLayout::CPU_TENSOR_ALIGNMENT)
          * MemoryLayout::CPU_TENSOR_ALIGNMENT;

        T* ptr = std::is_same_v<T, ftype> ?
                 static_cast<T*>(std::aligned_alloc(MemoryLayout::CPU_TENSOR_ALIGNMENT, alignedByteSize)) :
                 static_cast<T*>(std::malloc(n * sizeof(T)));

        // same as before...
      }
    }
  }
}

We can then replace our matmul implementation by the AVX version. We enclosed the matmul in a lambda earlier, so all we have to do is to rewrite the matmul itself. Using AVX instructions it looks like this now:

// src/backend/data_modeling/tensor.h

auto matmulTiles = [TILESIZE] (tile_t& tiles) {
  for(tensorSize_t n = 0; n < TILESIZE; n++) { // rows left

  const tensorSize_t leftTileRowOffset = n * TILESIZE;
    for(tensorSize_t m = 0; m < TILESIZE; m++) { // cols left

      const tensorSize_t rightTileRowOffset = m * TILESIZE;
      const ftype leftVal = tiles.left[leftTileRowOffset + m];
      const __m256 leftValVec = _mm256_set1_ps(leftVal); // broadcasted load

      for(tensorSize_t kk = 0; kk < TILESIZE; kk += 8) {
        __m256 rightVec  = _mm256_load_ps(&tiles.right[rightTileRowOffset + kk]);
        __m256 resultVec = _mm256_load_ps(&tiles.result[leftTileRowOffset + kk]);

      #if defined(USE_AVX2)
        resultVec = _mm256_fmadd_ps(leftValVec, rightVec, resultVec);
      #elif defined(USE_AVX)
        // AVX does not have fmadd
        __m256 mulVec = _mm256_mul_ps(leftValVec, rightVec);
        resultVec = _mm256_add_ps(resultVec, mulVec);
      #endif

        _mm256_store_ps(&tiles.result[leftTileRowOffset + kk], resultVec);
      }
    }
  }
};

One last thing to add is that there is hearsay that sometimes the compiler detects AVX on the system and happily compiles, but incompatibilities can crash the program at run-time. We can guard against this using a run-time check looking like this:

// src/backend/utility/avx_info.cpp

void utility::AvxInfo::verifyAvxSupport() {
  #if defined(USE_AVX512)
    if (!__builtin_cpu_supports("avx512f")) [[unlikely]] {
      std::cerr <<
        "Binary compiled with USE_AVX512 but the CPU does not support AVX-512. " <<
        "To use AVX reconfigure with -DAVX_VERSION=AVX2 (or AVX or SCALAR) and rebuild." << std::endl;
    }
    else [[likely]] {
      avxAvailable = true;
    }

    // check for other AVX versions...
  #endif
}

We can then guard against run-time exceptions using a static variable around our matmul-call like this:

// src/backend/data_modeling/tensor.cpp

Tensor Tensor::matMulImpl(const Tensor& left, const Tensor& right, const bool transposeLeft, const bool transposeRight) {
  // broadcasting
  auto resDims = left.dims.nDims() > right.dims.nDims() ? left.dims.toVector() : right.dims.toVector();
  resDims[resDims.size() - 2] = transposeLeft  ? left.dims.get(-1)  : left.dims.get(-2); // rows
  resDims[resDims.size() - 1] = transposeRight ? right.dims.get(-2) : right.dims.get(-1); // cols

  Tensor res(resDims, left.values->getDevice(), false);

  switch(left.values->getDevice()){
    case Device::CPU:
    {
  // some code leading to this call...
    #if defined(USE_AVX512) || defined(USE_AVX2) || defined(USE_AVX)
      static const bool avxVerified = utility::AvxInfo::getAvxAvailable();
      if(avxVerified) [[likely]] {
        while(leftOffset < left.getSize()){
          if(!(transposeLeft || transposeRight)) {
            matMul2DCpuAvx<false, false>(res, left, right, resOffset, leftOffset, rightOffset);
          }
          // other template overloads...
        }
      }
    else [[unlikely]] {
    #endif

      while(leftOffset < left.getSize()){
        if(!(transposeLeft || transposeRight)) {
          matMul2DCpuScalar<false, false>(res, left, right, resOffset, leftOffset, rightOffset);
        }
        // other template overloads...
      }
    }

    // wrap up function...
    }
  }
}

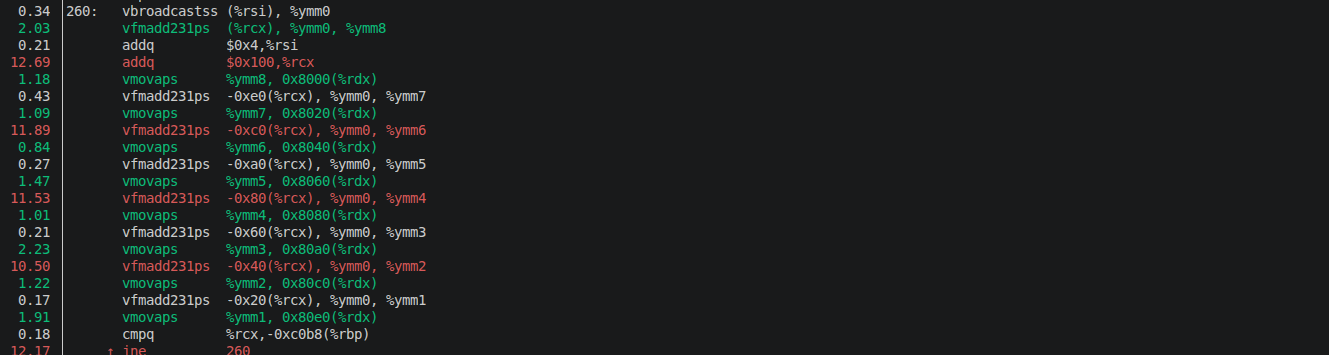

Checking the assembly code after the fix we do find that now indeed the backend uses the AVX instructions.

And that concludes our AVX implementation. In my library I check at compile time what AVX versions are available and compile with the highest available version. if desired the version can be set manually by calling cmake -DAVX_VERSION=AVX2 ... Other options are AVX, AVX512, and SCALAR for the non-AVX version.

For those who are interested in the compiled parts of this and who might want to try out a few compilers or flags, I used Godbolt to play around with this. You can follow the link https://godbolt.org/z/Eesbh6Y1r to get the source code and the initial compiled versions that I get in my current toolchain. Have fun!

Opt. 5 - Bypass PLT for library internal calls

We are now in a domain where our optimization efforts yield diminishing returns, in accordance with Amdahl's law. However, we are not done with optimizing our backend yet. Once again running perf we do see the following:

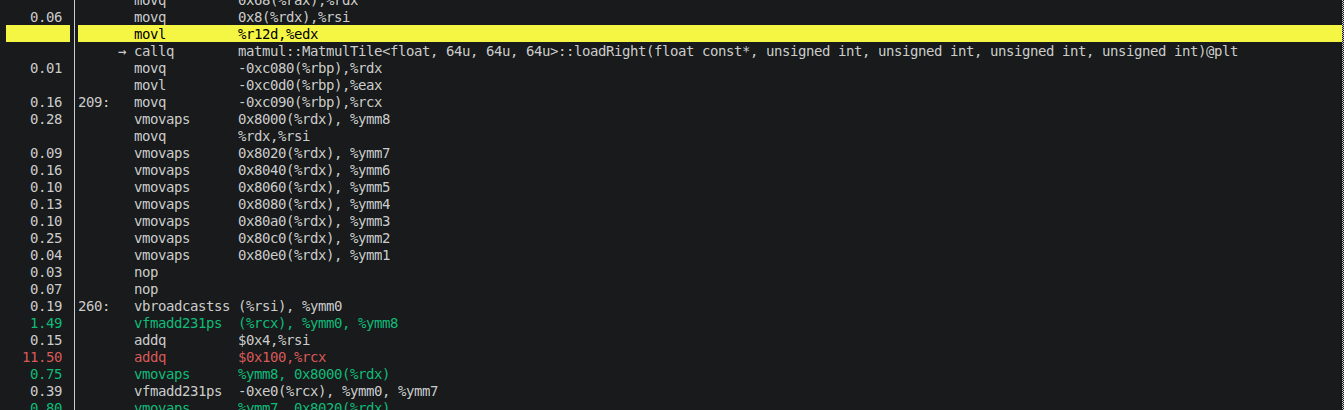

We do see that we reduced the matmul a whole lot from the overall picture. It seems that the []-operator at the top is the main slug now, but if you add the three instantiated template overloads of the matmul together it's still the top operation, with a run-time fraction of more than 20%. We take a brief look if we get some hints on whether we can do better to yield this output:

The interesting one here is the call through the Procedure-Linkage-Table, which is indicated by the @plt at the end of the line after the highlighted one in the screenshot above (I personally find white letters on a black background easier to read than black letters on a yellow background). This points us to a general problem with how we compile, and this fix is not constrained to the matmul itself, but rather to the whole backend.

Understanding this fix requires knowledge of the Global-Offset-Table (GOT) and the Procedure-Linkage-Table. For those who want to follow this entry and do not know what these are about I have an optional section next. Anyone who knows them or who does not care about the details in this section is free to skip past the optional section.

Optional: Global-Offset-Table (GOT) and Procedure-Linkage-Table (PLT)

▲ Collapse

This is a quick breakdown of the two hidden yet extremely important data structures we are dealing with in this subchapter. In part 1 of this blogpost series we gave our library position independent code. In a very brief optional section toward the end I promised you that we would be revisiting that part of the library in a later post, and that fateful moment has finally arrived.

In essence, back then we concluded that we have to use dynamic linking into our library from Python, since the main process surrounding everything is the Python interpreter itself. That means that at startup time of the program calls into our library do not have an address yet, as opposed to statically linked programs. The following figure shows briefly what that looks like in the latter case:

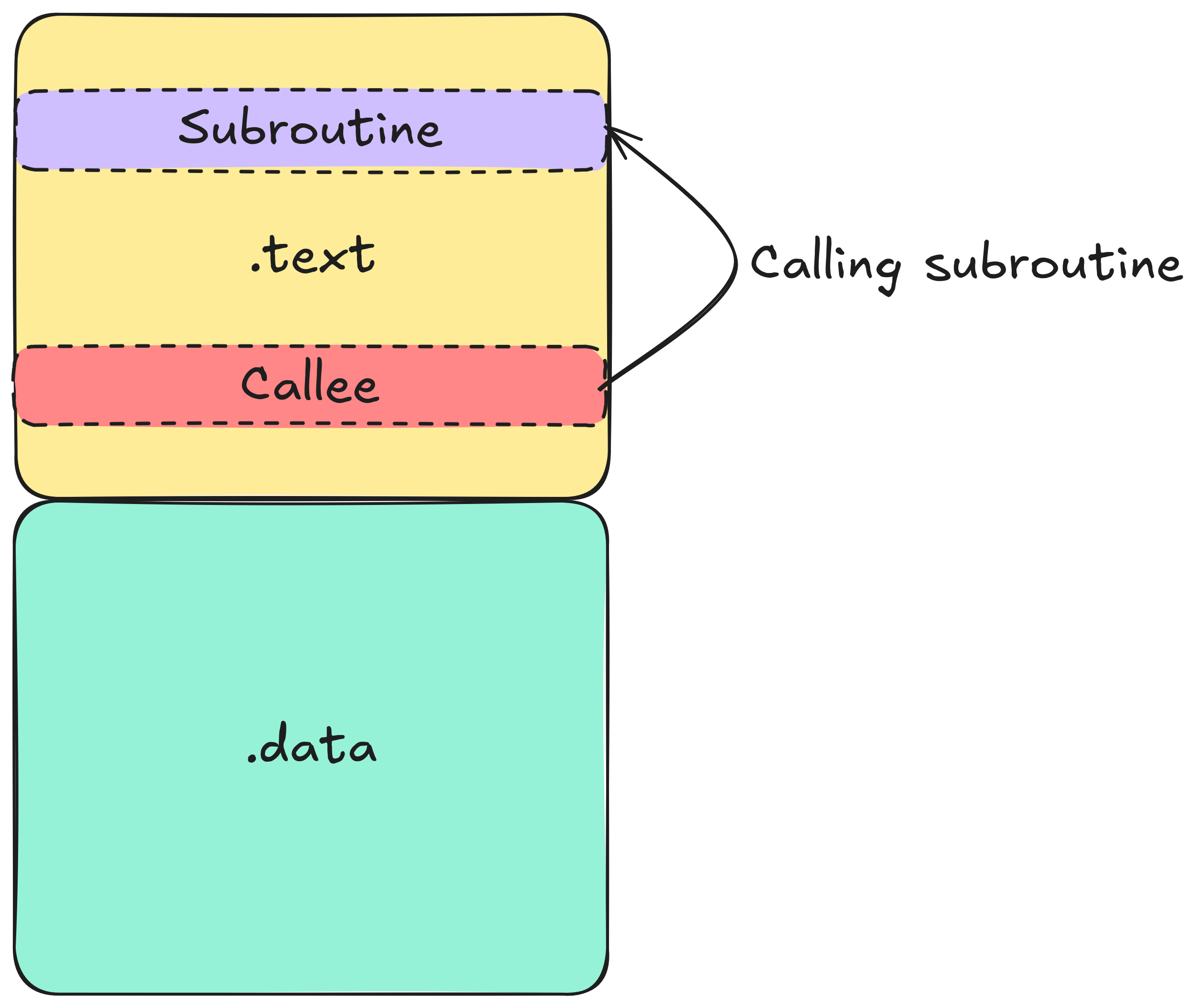

The figure shows that a function call is a simple call at the relevant address. Additionally, this address is known at compile time, thus can be directly baked into the assembly code as an immediate. So no surprises here.

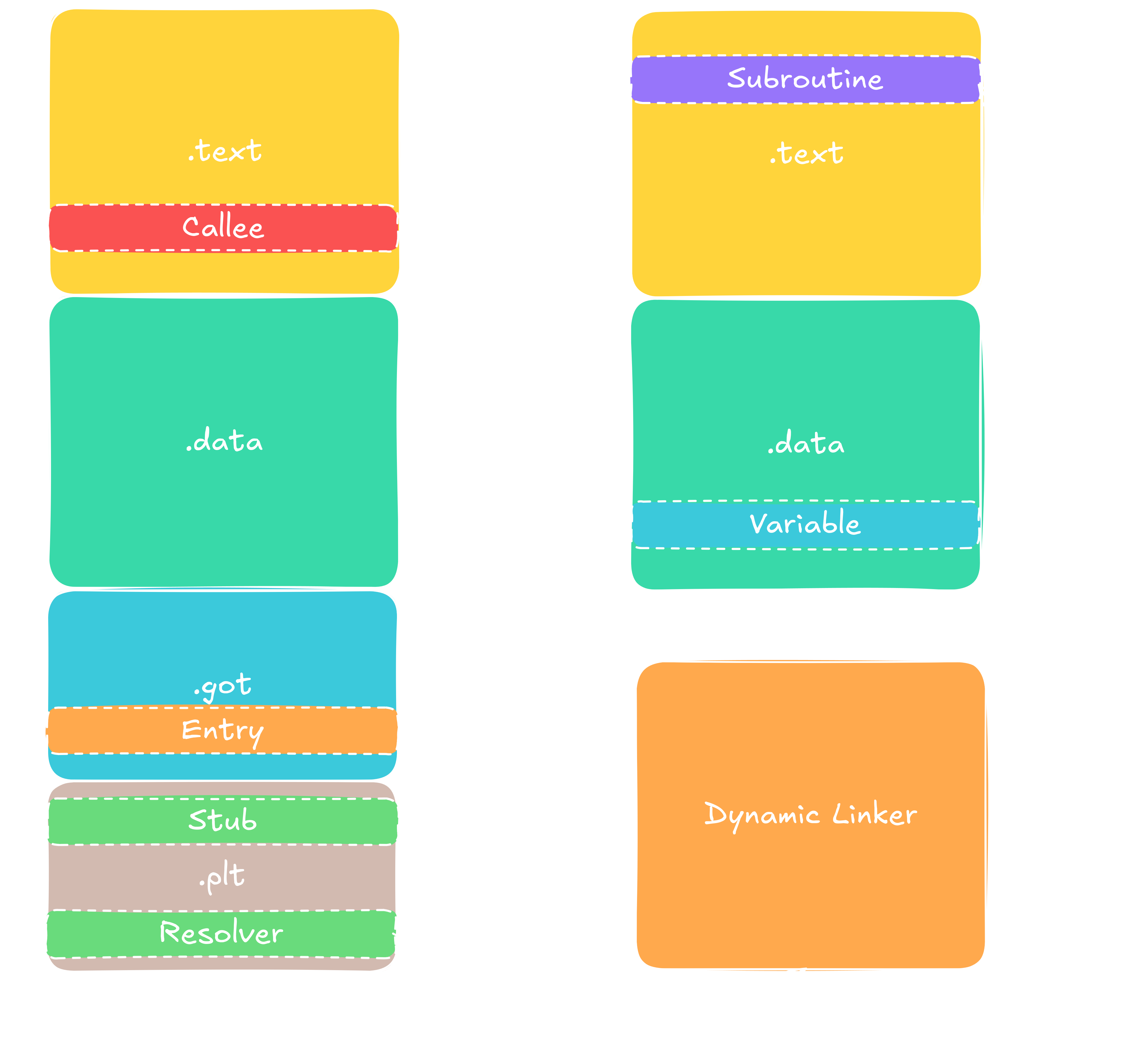

It gets more interesting when we use dynamic linking. In that case the program shares an address space with the binary we just linked in (the library), but the addresses are not known at run-time. The question now is how does this work, and the answer is rather mundane, yet worth knowing in jargon. The following image shows the principle, and then I walk you through step-by-step.

Here, I introduced two new segments in the program. First there is the GOT, which is part of the .data segment, i.e. it can be written to. The second segment is the read-only PLT segment. It holds a stub pointing to the entry in the GOT. The first time a function is called, the GOT holds a reference to an address resolver. That resolver then calls the dynamic linker, returning back the address of the function in the loaded library, which then gets cached in the GOT.

The whole mechanism results in a chain of indirections the first time the function is called. But then every subsequent call gets resolved by three indirections: First into the PLT, then into the GOT, pointing to the function itself. The main idea behind this is lazy binding. We only load memory addresses of calls that we need. We could theoretically bypass the PLT, calling into the GOT directly, but that would mean we could not distinguish the first call from the follow up calls, forcing us to fill the GOT at program start-up, which can be very costly and inducing overhead on functions we actually do not use on first call.

It is also interesting to know that the route through the PLT is actually not possible with objects and variables. The reason is that functions are executable. When we call the function, we can first call another function that replaces the address for us as a side effect. Objects do not have such a mechanism inherently. So for global objects and variables the addresses are filled into the GOT at load time, and a call to those will always be one indirection into the GOT and then a second one into the library, resulting in two indirections.

The problem with using the PLT in our code is that it calls the PLT to walk through the backend itself. It is in matmul, where a local tile object resides, and utilizes the PLT to call into an object that should technically reside in the same translation unit. But how is that possible?

The reason is in the default behavior of the compiler. When we compile a dynamic library, the compiler does not know which methods we want accessible from the outside, and which ones we don't. That in turn makes the compiler generate a GOT and PLT for all publicly interfaceable functions. Our fix then is of course to revert the compiler's choices. We tell the compiler to generate invisible functions by target_compile_options(BackendCore PRIVATE -fvisibility=hidden -fvisibility-inlines-hidden). We can then on a per class or function level decide to expose them by __attribute__((visibility("default"))) in GCC and clang.

In my case I just did a blanket per-class exposure on classes that are partially or fully exposed on the Python side, and one can do a fine tuning for classes that only need partial exposure on the Python side. Crucially Python does not need to know about the tiles, hence we do not expose that one, concluding our fix.

Opt. 6 - Remove safety checks from often called functions

This fix is gonna be a very brief and quick one. As we saw in our previous step, accessing the tensor's values now chews up a lot of our cycles. For reference the output here again:

Now the crux is that I decided to make these functions safe by using boundary checks as in

// src/backend/data_modeling/tensor.cpp

ftype Tensor::tensorValues_t::operator[](const tensorSize_t idx) const {
  if(idx >= size)
    throw std::out_of_range("Out of range for tensor");

  // ...
}

Once a network has proven itself there is however no reason for those boundary checks, and given a well-defined network they will not occur in any case. Instead those are more for debugging purposes for us as the backend devs. Hence we can simply guard those checks by

// src/backend/data_modeling/tensor.cpp

ftype Tensor::tensorValues_t::operator[](const tensorSize_t idx) const {
#ifndef NDEBUG
  if(idx >= size)
    throw std::out_of_range("Out of range for tensor");
#endif

  // ...
}

And that's the fix already. I have to admit here though that this was my bad. If you go into the code yourself you'll find that I flipped the condition around with #ifdef NDEBUG. A small letter making a huge difference. The new output looks like this now:

To be fair, it didn't seem to tilt the needle in the perf profiling, but we get some improvements in our benchmark that we happily take.

Opt. 7 - Remove redundant device checks

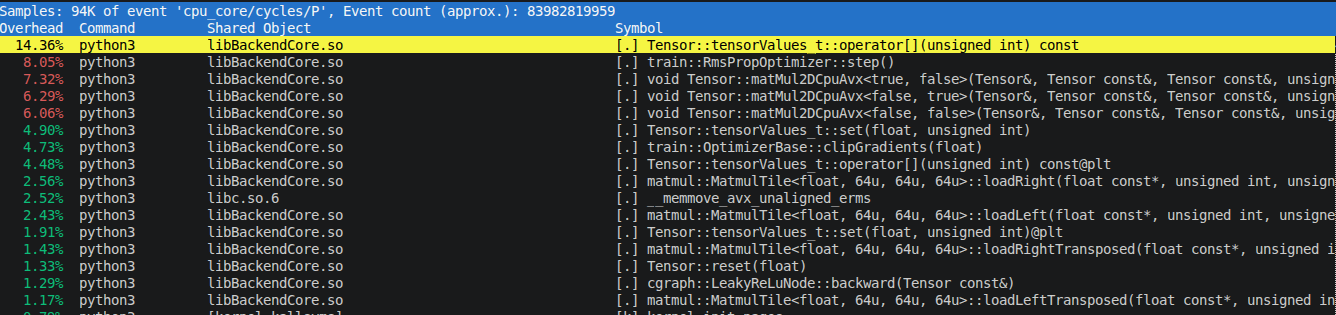

Looking at the output after the last fix we can still see that the getter- and setter-methods to access our tensors are taking a long time. So let's have a look at an example now of what they look like:

// src/backend/data_modeling/tensor.cpp

ftype Tensor::tensorValues_t::operator[](const tensorSize_t idx) const {
#ifndef NDEBUG
  if(idx >= size)
    throw std::out_of_range("Out of range for tensor");
#endif

  switch(device){
    case Device::CPU:
      return values[idx];
    case Device::CUDA:
      #ifdef __CUDA
      {
        ftype res;
        cudaErrchk(cudaMemcpy(&res, values + idx, sizeof(ftype), cudaMemcpyDeviceToHost));
        return res;
      }
      #else
        __throw_invalid_argument("Not compiled with CUDA");
        break;
      #endif
  }

  __throw_runtime_error("Should never reach here.");
  return 0; // suppress warnings
}

Now that's a whole lot for simply reading a value. It becomes more absurd when we think about how we structured our CUDA side in the code: We request an operation, say a matmul, then check where the tensors reside, then perform the operations. On the CUDA side that works just fine, since we operate on raw tensors.

However, on the CPU side we use this function for every value we read. That's a whole lot of redundant device checks we perform here. In the following we bypass these redundant checks. We leave the operator for the Python binding, where a user might want to use single values or print out some information about the tensor. And as for the backend side, we give the functions on the CPU side a pointer to the raw array, mimicking the CUDA side. For instance, we transform this part

// src/backend/computational_graph/activation_functions/relu_node.cpp

for(tensorSize_t i = 0; i < upstreamGrad.getSize(); i++){
  res->set((*parent)[i] > zero ? upstreamGrad[i] : zero, i); // uses non-optimal []-operator
}

into this:

// src/backend/computational_graph/activation_functions/relu_node.cpp

for(tensorSize_t i = 0; i < upstreamGrad.getSize(); i++){
  res->data()[i] = parent->data()[i] > zero ? upstreamGrad.data()[i] : zero; // uses raw pointer directly
}

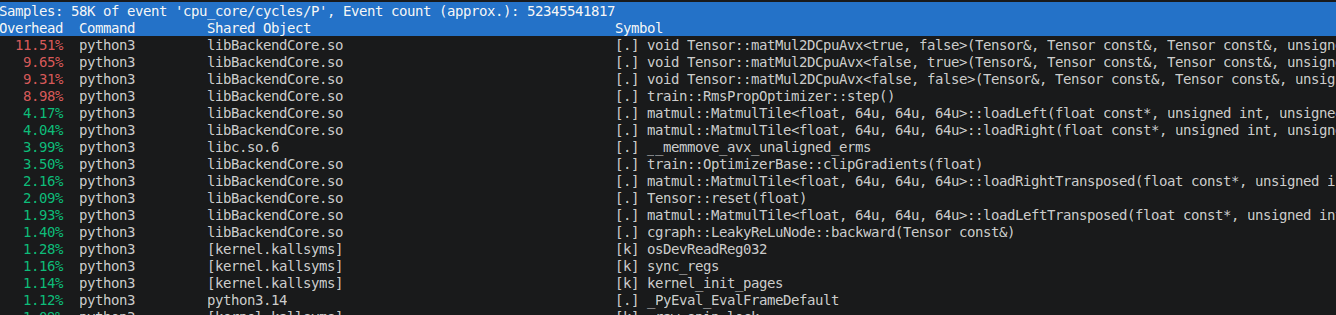

The result of this fix once again put the matmul into our focus again. But before that we should finally fix a memory leak that went unnoticed until now (at least on my smaller benchmarks).

Opt. 8 - Fix memory leak on ABI level

Before we move on to the final fix we first have to fix a memory leak that started to appear in my unit tests now. We had several memory leaks across the path already, and I fixed them silently (you can find them in the git history of course, but not in these blogposts). However, this one I found particularly interesting, so I wanted to share it with you.

Importantly at first, the memory leak started to show its teeth on "larger" benchmarks. Even a simple MNIST example could burst my working memory, and fill the GPU as well. However, running compute-sanitizer --leak-check full did not reveal anything. So the memory leak is not visible once the program shuts down. So how do we go about it now? Sitting there with no clue as to what might be going on we might want to try git bisect, checking which commit introduced the leak and then go about fixing it.

Luckily for us though we localized memory management, so we might as well start by taking a closer look at our memory pool. For reference, here are its declaration and its instantiation again.

// src/backend/shared/memory_pool.h

namespace mempool_impl {
  template<typename T>
  class DLLIB_API MemoryPool final {
    private:
      // hold pointers to unused allocated memory.
      std::unordered_map<tensorSize_t, std::vector<T*>> freeLists;
      std::unordered_map<tensorSize_t, std::vector<T*>> freeListsCuda;

    public:
      MemoryPool() = default;
      ~MemoryPool() noexcept;

      T* request(Device d, tensorSize_t n);
      void giveback(T* ptr, Device d, tensorSize_t n);
      void flush(Device d) noexcept;
  };
}

namespace mempool {
  inline static mempool_impl::MemoryPool<ftype> tensorPool;
  inline static mempool_impl::MemoryPool<tensorDim_t> tensorDimPool;
  inline static mempool_impl::MemoryPool<tensorSize_t> tensorSizePool;
}

Three steps earlier we were already talking about static and dynamic linking, and how they differ in execution below. That priming will come in handy now as we will see. So let us first think about my sloppy initialization of the memory pools. I used inline static without giving it much thought, but that already reveals a problem, more concretely in the use of static.

The keyword static has a little more to it than meets the eye. At a class level we can make a static declared object a class object that all instances share. Inside a function the drill is the same. But what about namespace scope, as we have it here? In that case the C++ standard gives it static storage duration and internal linkage. That firmly squares it as a translation unit local entity. That is, each translation unit gets its own copy.

A translation unit is one .cpp file after being fully expanded as a result of the preprocessor doing its thing. So now we can see why what I did here is dangerous: Each .cpp including our memory pool has its own memory pool before the linker comes in, and the static keyword tells the compiler that this is what we wanted. The learning here clearly is to be careful with the static keyword at namespace scope. Especially inside headers!

Plainly removing static does not fix our problem yet though, so let's look deeper. We have the inline keyword left, which gives external linkage, meaning the one-definition-rule (ODR) must be satisfied among translation units. When we compile the program, then at first we end up with many translation units, each having their own local copy of the memory pool. But when we link them together then the linker picks up on the inline keyword and merges them all into one canonical memory pool for the compiled output, satisfying the ODR for us. So far so good.

What breaks our code now is the one dimension that the linker itself cannot see at this point, namely the dynamic linking itself. In the previous steps we have introduced a new compiler flag, forcing everything of our shared libBackendCore.so to be invisible to the binary we link it against, except for the parts we want to expose. Obviously the memory pool is not part of that.

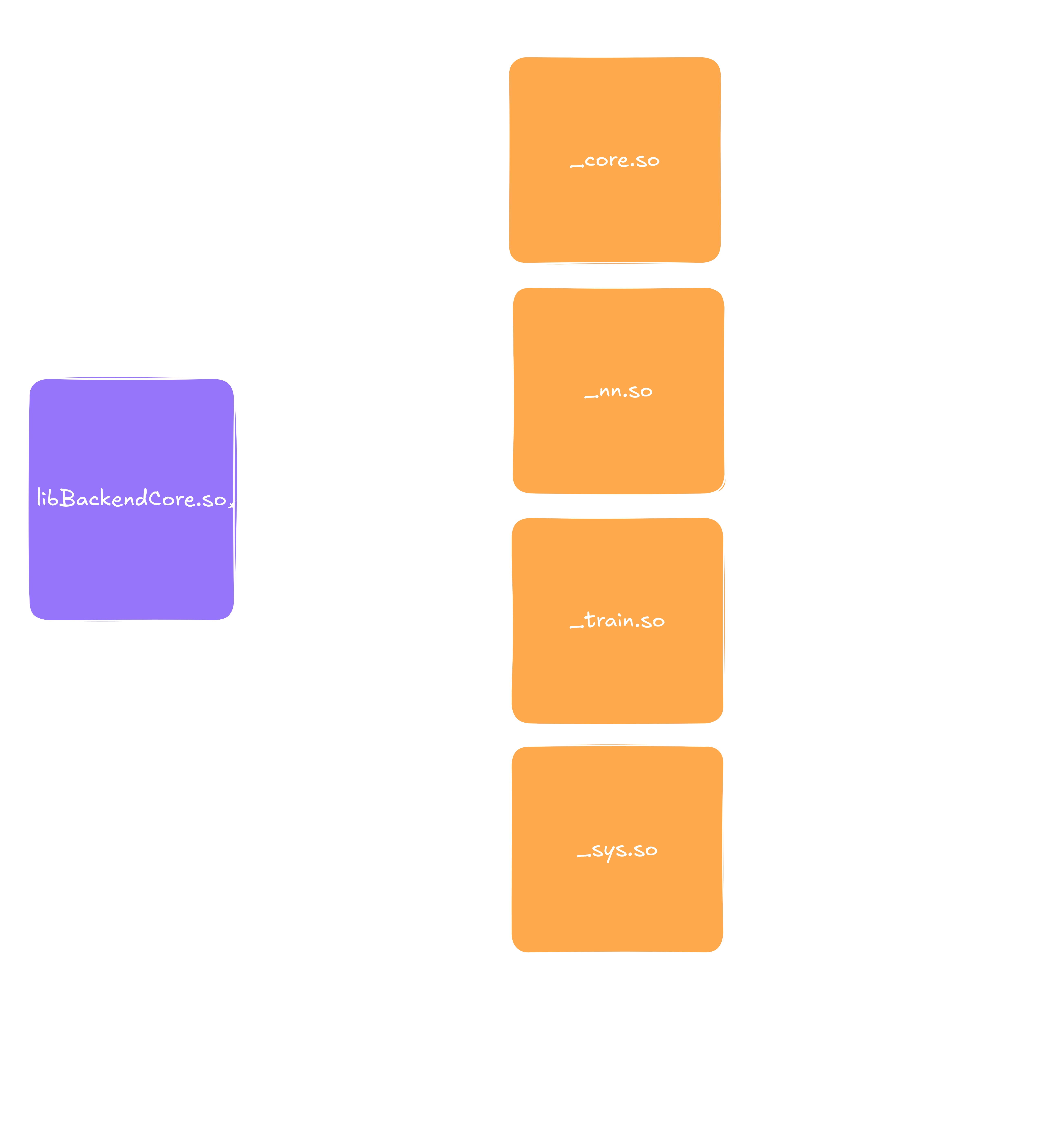

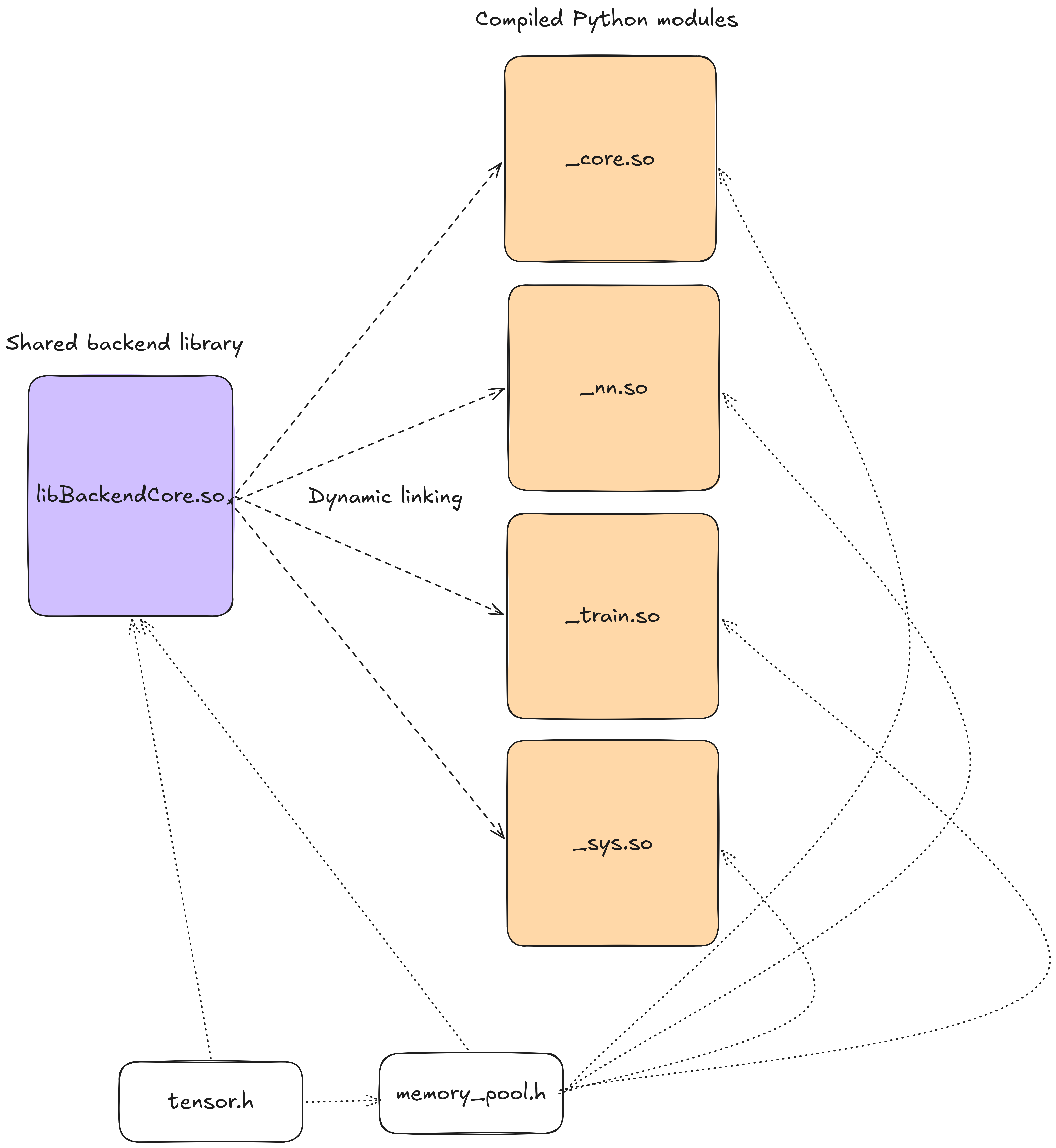

However, since we instantiate the memory pools in a header, there ends up an instance of a memory pool in each of the libraries. The inline keyword is supposed to tell the linker that it should resolve all those into one memory pool only, but our invisibility flag renders that attempt impossible. Additionally I did the following in the tensor class:

// src/backend/data_modeling/tensor.h

class DLLIB_API Tensor final : public std::enable_shared_from_this<Tensor>
{
  // ...

  class DLLIB_API tensorValues_t final
  {
  private:
    tensorSize_t size = 0;
    ftype* values = nullptr;

    Device device;
    inline static Device defaultDevice = Device::CPU;

  public:
    explicit tensorValues_t() { device = defaultDevice; }
    explicit tensorValues_t(Device d) : device(d) {}

    ~tensorValues_t() noexcept {
      if(values != nullptr)
        mempool::tensorPool.giveback(values, device, size);
    }

    // ...
  };
};

The DLLIB_API macro here hides the visibility=default attribute, enabling cross-library access through the PLT and the GOT for these two classes. The error snuck in when I inlined the destructor of tensorValues_t though, leading to a local copy of the destructor in the shared libraries as well. The following image shows how the includes can happen:

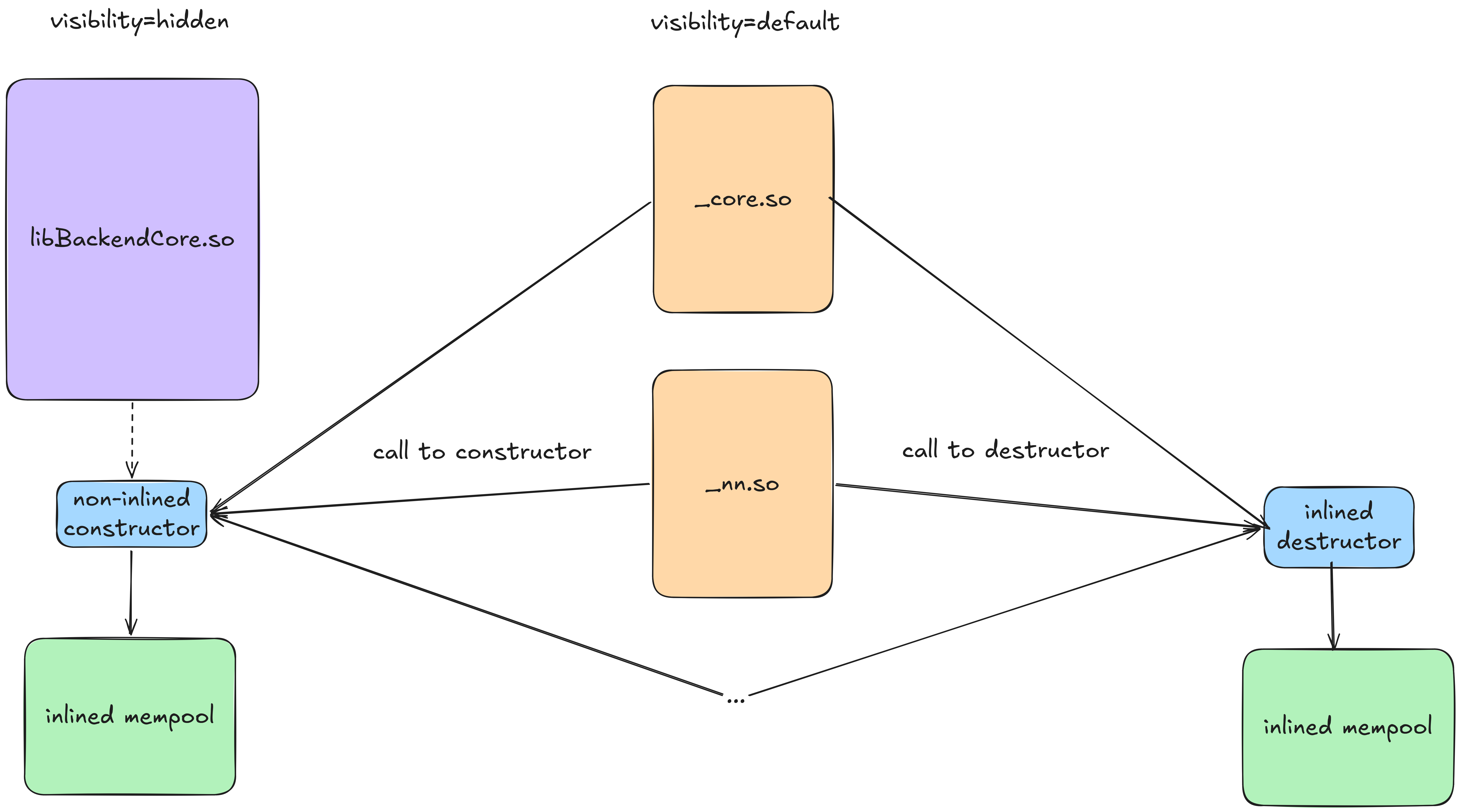

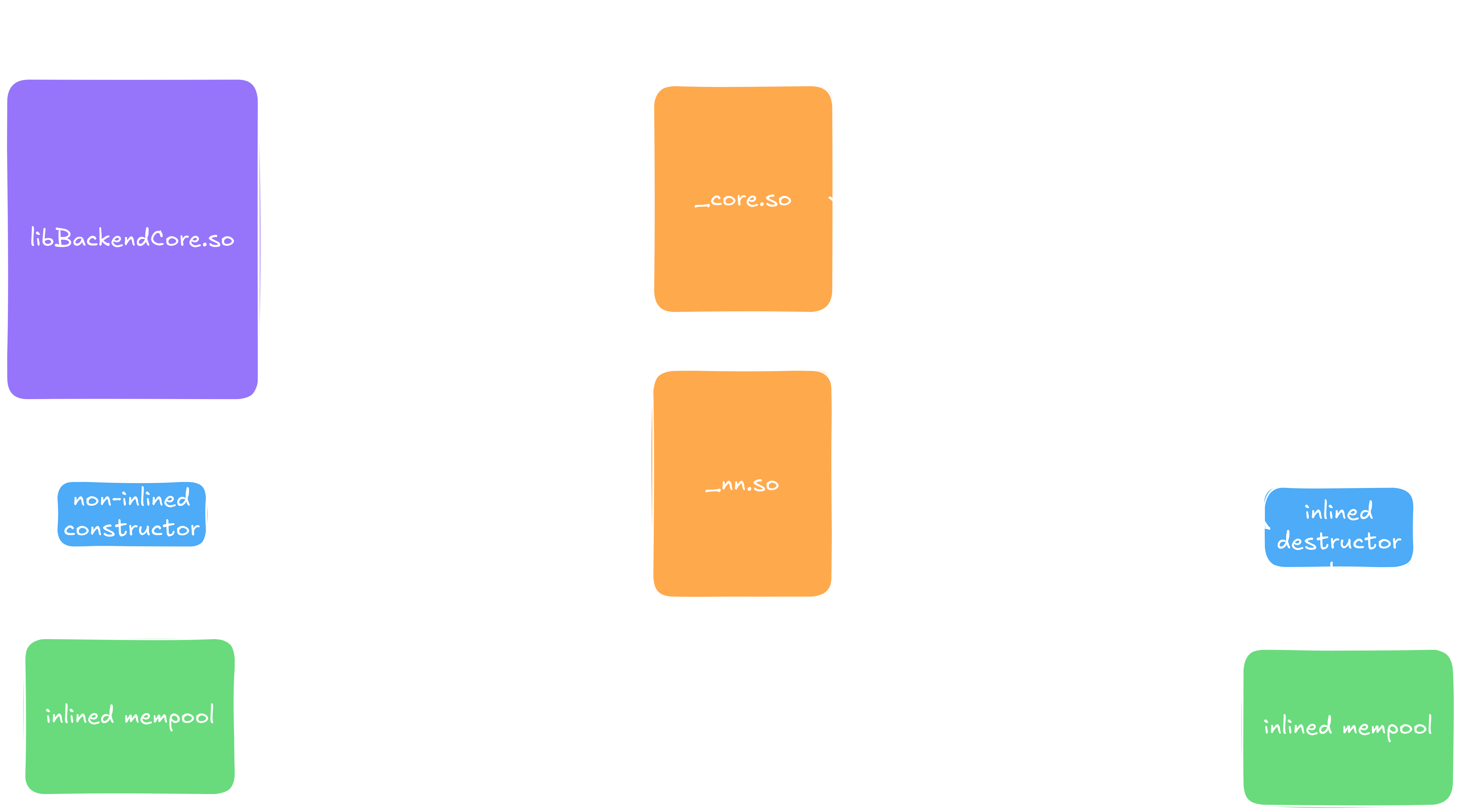

On the left side of this image we see the libBackendCore.so. This is the fundamental backend library that all the Python modules use and link against at run-time. It is a shared library to avoid duplicate code and make object management simpler. On the right side we see the Python modules. These are the bindings wrapping around the backend library and exposing it to the Python frontend. Both the tensor.h and the memory_pool.h get included in each of these, or at least theoretically can do so.

The libBackendCore.so has default visibility of objects set to hidden, while the right side has visibility set to visible on everything. The problem that arises from that is depicted in this second image.

And here we finally go full circle. The hidden visibility creates two memory pools, one owned by libBackendCore.so, and one shared among the Python frontends. Because the constructor (or more precisely the resize()-method of the tensorValues_t class) is exposed through the dynamic library, requests to allocate memory go into the backend. Because methods accessing the values walk through the backend as well, this usually works fine so far.

However, deallocation happens in the inlined destructor of tensorValues_t, and gets called directly in the Python frontend modules. Because they do not see the libBackendCore's memory pool, but instead their own copy of it, they direct these requests to their own memory pool. This results in a loop where the memory pool in libBackendCore keeps on allocating memory, but is never asked to free any of that.

The fix to that now is straightforward. We can either non-inline the destructor, in which case a developer might be inclined to do so again or something similar in the future. In other words, we would be setting up a booby-trap for ourselves and everyone else working on the same project. Or alternatively we could open up the memory pools by making them visible in the backend as well, ensuring that all parties see the same instances of memory pools. My measurements did not indicate a significant performance penalty in either direction, so I went with the latter solution, ending up with:

// src/backend/shared/memory_pool.h

namespace mempool {
  // DLLIB_API == macro returning visibility to default
  DLLIB_API inline mempool_impl::MemoryPool<ftype> tensorPool;
  DLLIB_API inline mempool_impl::MemoryPool<tensorDim_t> tensorDimPool;
  DLLIB_API inline mempool_impl::MemoryPool<tensorSize_t> tensorSizePool;
}

Opt. 9 - Multithreaded matrix multiplication

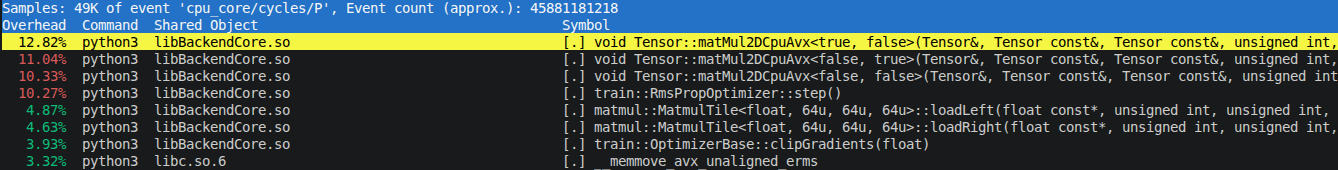

We want to do one last optimization step that is pretty obvious and a nice experiment as well. In the previous steps we found that matmul became once again our bottleneck. To verify that this still holds we can run perf once more to see the obvious once more:

Our library now sings "Honey came in and she caught me red handed...", and we can safely proceed on optimizing the matmul, knowing that our efforts mean something. There's not too much we can do in this current setting though, albeit I have some more ideas (see the summary), but the most obvious one and perhaps the most interesting is a parallel computation. We already know from CUDA that we can assign one thread to compute an entire tile of the result without any worries of thread coordination, so why not do that here as well?

Since we might be wanting to do that with other operations as well in the future I decided to go for a thread pool. Because the implementation of that is probably not too interesting here, and there are great sources out there, I simply give you the class definition, and you can look up the implementation in detail in the repository. The definition looks like this now:

// src/backend/shared/threadpool.h

namespace threadpool_impl {
  class ThreadPool final {
    private:
      // ...

    public:
      ThreadPool() : stop{false}, activeTasks{0} {
        constexpr unsigned int nthreads = 3; // we leave one P-core for the rest of the program
        threads.reserve(nthreads);

        for(unsigned int i = 0; i < nthreads; i++) {
          threads.emplace_back(&ThreadPool::workerLoop, this);
        }
      };

      ~ThreadPool() noexcept;

      // thread pool is singleton, hence suppress copies and moves
      ThreadPool(const ThreadPool&) = delete;
      ThreadPool& operator=(const ThreadPool&) = delete;
      ThreadPool(ThreadPool&&) = delete;
      ThreadPool& operator=(ThreadPool&&) = delete;

      void enque(std::function<void()> f);

      void waitAll();
  };
}

I already took some time here to empirically find the optimal number of threads. A more canonical way would be to determine the number of cores the computer has via std::thread::hardware_concurrency(), and then doing some empirics. In the case of my Intel i5 210H, it supplies us with four performance cores and four efficiency cores. The performance cores return a value of two each, so the function call returns a 12 for me. Obviously though the efficiency cores are slower than the performance cores, and giving the operation more than four threads resulted in degraded results. The optimal number of threads seemed to be three, one for each performance core with one performance core being free for other tasks.

Launching the threadpool onto our matmul looks like this now:

// src/backend/data_modeling/tensor.h

template<bool transposeLeft, bool transposeRight>
void Tensor::matMul2DCpuAvx(Tensor& res, const Tensor& left, const Tensor& right, const tensorSize_t resOffset,
                               const tensorSize_t leftOffset, const tensorSize_t rightOffset) {

  // same as before...

  if constexpr (!transposeLeft && !transposeRight) {
    for(tensorSize_t i = 0; i < nRowsLeft; i += TILESIZE) {
      auto worker = [matmulTiles, &res, &left, &right, i, nRowsLeft, nRowsRight, nColsLeft, nColsRight, resOffset, leftOffset, rightOffset]() {
        tile_t tiles;

        for(tensorSize_t j = 0; j < nColsRight; j += TILESIZE) {
          tiles.clearResult();

          for(tensorSize_t k0 = 0; k0 < nColsLeft; k0 += TILESIZE) {
            tiles.loadLeft(left.values->data() + leftOffset, i, k0, nRowsLeft, nColsLeft);
            tiles.loadRight(right.values->data() + rightOffset, k0, j, nRowsRight, nColsRight);

            matmulTiles(tiles);
          }

          tiles.addResult(res.values->data() + resOffset, i, j, nRowsLeft, nColsRight);
        }
      };

      threadPool.enque(worker);
    }
  }
  // other template overloads
  else {
    // ... last template overload
  }

  threadPool.waitAll();
}

No surprises there. Lastly we also want to make sure that we avoid false sharing. We can do this by making sure that the tilesize is a multiple of the size of a cache-line, e.g. through constexpr tensorSize_t TILESIZE = (MemoryLayout::CACHE_LINE_BYTES / sizeof(ftype)) * 4;, and making sure that the tiles are cache-line aligned as well, by using alignas(MemoryLayout::CPU_TENSOR_ALIGNMENT) std::array<T, TileM * TileK> left{};. Tensor-alignment is 64 in my case, once again the size of a cache-line on my system.

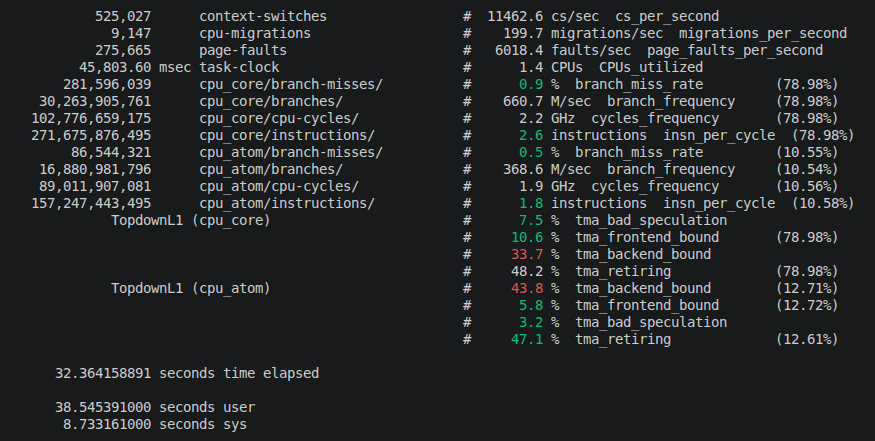

Running the parallel matmul now gives us the following run-time: 4.11s. That's a fraction of 0.68, or in other words, the version we had before was 1.48 times faster. On top of it this version is also much more volatile in its run-time, meaning the variance in between subsequent batches also increased visibly. Running perf stat gives us the next figure.

We want to compare this with the non-parallel matmul:

The two most striking things are something we have already seen. We find ourselves in a lot of context switches, and also still an elevated number of efficiency core instructions. If the scheduler wills it, what say do we have? Ok well, we do actually have a say in it, but just for reference we might try with more threads. I have 12 possible threads I can run, so let's try 10 threads for now. We get a run-time of 5.10s (with a least stable variance again). I will spare you the perf stat output here, since it just captures the previous trend.

So in summary, our enemy has become the scheduler, and our remedy against it is core pinning. We take the three threads we had earlier and assign them one of the performance cores. The threadpool's new constructor now looks like this:

// src/backend/shared/threadpool.h

#define PIN_CORES

#ifdef PIN_CORES
#include <pthread.h>
#include <sched.h>
#endif

namespace threadpool_impl {
  class ThreadPool final {
    private:
      // ...
    public:
      ThreadPool() : stop{false}, activeTasks{0} {
      #ifdef PIN_CORES
        constexpr unsigned int nthreads = 3; // we leave one P-core for the rest of the program
        const std::vector<int> pCores = {0, 2, 4, 6};
      #else
        const unsigned int nthreads = 10; //std::max(static_cast<unsigned int>(1), std::thread::hardware_concurrency() / 2);
      #endif
        threads.reserve(nthreads);

        for(unsigned int i = 0; i < nthreads; i++) {
          threads.emplace_back(&ThreadPool::workerLoop, this);

        #ifdef PIN_CORES
          cpu_set_t cpuset;
          CPU_ZERO(&cpuset);
          CPU_SET(pCores[i], &cpuset);
          pthread_setaffinity_np(threads.back().native_handle(),
                                sizeof(cpu_set_t), &cpuset);
        #endif
        }
      };

      // ...
  };
}

The core numbers const std::vector<int> pCores = {0, 2, 4, 6}; are CPU specific and need to be queried using lscpu. For example, lscpu --extended gives me

CPU NODE SOCKET CORE L1d:L1i:L2:L3 ONLINE    MAXMHZ   MINMHZ       MHZ
  0    0      0    0 0:0:0:0          yes 4800.0000 400.0000  400.5820
  1    0      0    0 0:0:0:0          yes 4800.0000 400.0000  400.0000
  2    0      0    1 4:4:1:0          yes 4800.0000 400.0000  888.9070
  3    0      0    1 4:4:1:0          yes 4800.0000 400.0000  400.0000
  4    0      0    2 8:8:2:0          yes 4800.0000 400.0000  810.4840
  5    0      0    2 8:8:2:0          yes 4800.0000 400.0000  400.0000
  6    0      0    3 12:12:3:0        yes 4800.0000 400.0000  668.5630
  7    0      0    3 12:12:3:0        yes 4800.0000 400.0000  947.8300
  8    0      0    4 20:20:5:0        yes 3600.0000 400.0000  611.9660
  9    0      0    5 21:21:5:0        yes 3600.0000 400.0000 1515.2030
 10    0      0    6 22:22:5:0        yes 3600.0000 400.0000  885.3500
 11    0      0    7 23:23:5:0        yes 3600.0000 400.0000 1000.5190

We can use the frequencies to identify P- and E-cores, and the core tells us which physical unit this is. Giving now three threads, one per physical P-core and fixing it to that core, our benchmark time becomes 3.53s. Better than before, but still slower than the non-parallel 2.78s we get. Attempting to give each P-core two threads increases the time back to 4.22s. Running perf stat again on the three-threaded application parrots back at us the following:

Interestingly the program was way faster than it had been previously, with a benchmark time down to 2.68s. Running it a minute later with perf stat shows that this seemed to be a fluke. I cannot find yet what it was, perhaps a temperature change in the room or just a lucky scheduling? Hard to say, but anyway, we do see our context switches having gone down by half, but they're still above what we were used to in the single threaded application.

The solution to the puzzle comes from running the benchmarks that are in {project root}/benchmarking. Here is a benchmark file using Google benchmark, where multiple sizes of inputs are run. The following image shows those benchmarking results for the single threaded matmul operation on different input sizes, along with total time and CPU time.

To get the full picture of course we do need to compare with the multithreaded version, which looks like this:

And here we can finally see what was going on. In general the parallel version whups the single threaded version on CPU time every time. Looking at the overall time we do see that the single threaded version wins on smaller samples, while the multi-threaded version does so on larger ones. The threshold in the examples is somewhere between the sizes of 64/64/64/ and 256/256/256.

On the MNIST benchmark the system seems to be losing so much time just managing all of our threads, that the gains it wins on the parallel matmul get lost in kernel space itself. That is not a bad result for us though, as on smaller inputs, at least for our small networks we've been playing with so far, the single-threaded matmul is sufficient. If we want to keep the multithreaded matmul, then the way forward is to run further benchmarks and decide a sensible threshold on the input dimensions, adjusted by the system one is running on.

That's of course quite some work to do there, should we want to generalize the parallel matmul. And I do not even have the systems to test all of that on. For now I decided to keep the parallel matmul and hide its compilation behind an optional CMake flag, which is turned off by default. The core pinning hides behind a flag inside the code itself and next to the threadpool. If you feel like experimenting with those settings I won't stop you and would appreciate if you could let me know what you found. As for this article though it's probably a good time to call it a day.

Summary

This concludes the last part of this four part series on PyTorch demystified. In this part we looked at the CPU of the program and used perf for profiler driven optimizations, and we reduced the overall time from 41.45s down to 2.78s. That is a nearly 15-fold improvement in run-time performance, and we started out with a program that wasn't written all too shabby to begin with.

Our optimizations led us over compiler optimizations to better cache behavior in the matmul operations, as well as AVX instructions and a threadpool, but also led us across to other interesting parts of the program where we optimized, most notably the interface in between shared libraries.

We could add further optimizations both for CUDA and for the CPU backend. For instance, we could implement mixed precision floating point arithmetic, modern datatypes such as the brainfloat data type, more constexpr-functions for lookups, such as in the sigmoid function, among others. But for now it's a good choice to rest and enjoy our well earned evening walk or whatever you are into. As always I'd be happy to hear feedback, so feel free to reach out. Cheers.
